Pits Atlas: Tycho 18
| Impact Melt pit: Tycho | |
|---|---|
| Name | Tycho 18 |
| Lat. | -43.2779 |
| Long. | 347.8259 |
| Desc. | Semicircular pit, floor is largely in shadow in available images. Several large boulders are visible sticking up above floor (including one ~7m tall one near the center). In a region of N-S trending fractures, but not connected to any of them |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Tycho |
| Funnel Min. Diam. | 61 |
| Funnel Max. Diam. | 70 |
| Inner Min. Diam. | 40 |
| Inner Max. Diam. | 61 |
| Azimuth | 10 |
| Depth | 17.0 |
| Depth 1 | 17.7 |
| Depth 2 | >13.0 |
| Depth 3 | 17.0 |
| Best Stereo Left | M1182543691L |
| Best Stereo Right | M1182543691L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depths, particularly 2 and 3, may be to sides of boulders, not actual floor. |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | Y |
| In Depression | N? |
| Colinear Pits | N |
| Colinear Depressions | N? |
| Colinear Fractures | Y |

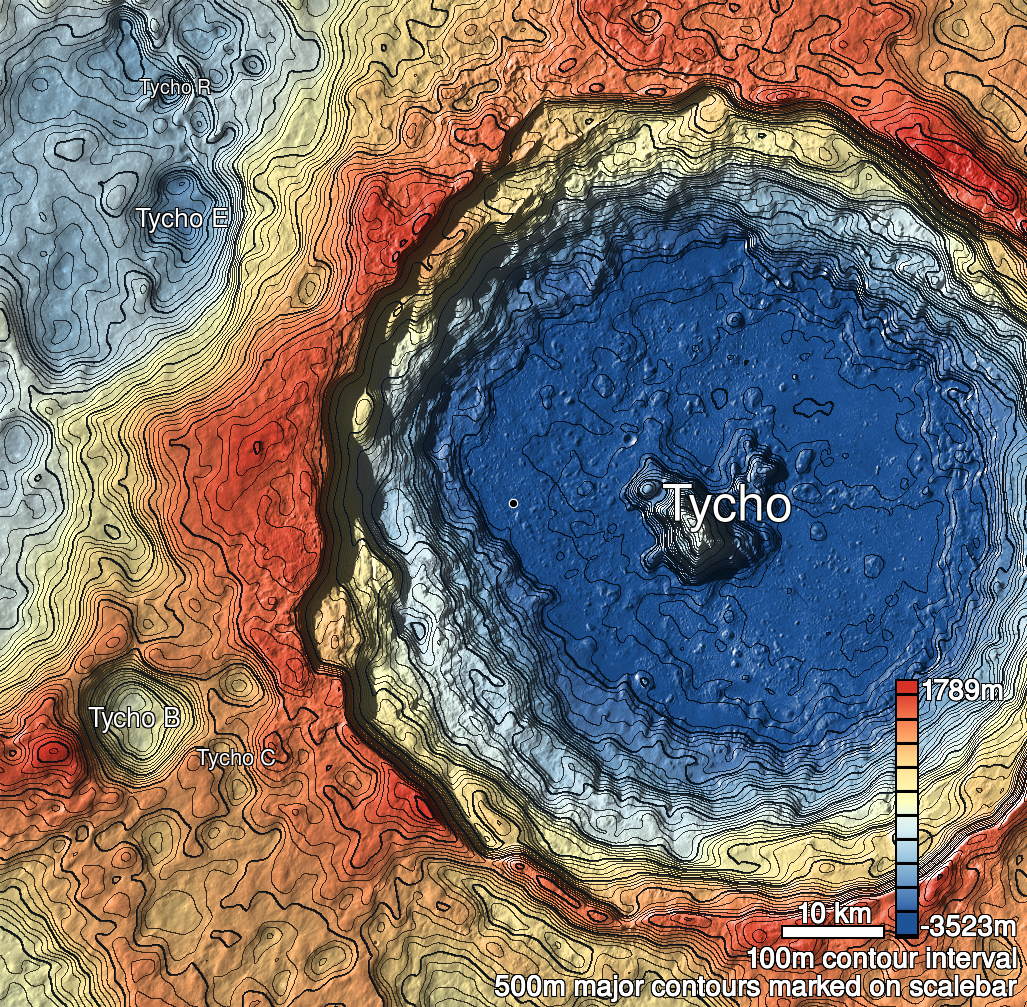

| Tycho 18 Shaded Relief | |
|---|---|
 |
| M1114240826R | |
|---|---|
 |
|
| Line | 51851 |
| Sample | 1171 |
| Inc. Angle | -57.24 |
| Emission Angle | -0.51 |
| Time | 14.65 |
| Resolution | 0.64 |
| M1182536589R | |
|---|---|
 |
|
| Inc. Angle | 58.83 |
| Emission Angle | 0.35 |
| Time | 9.02 |
| Resolution | 0.68 |
| M1129575693L | |
|---|---|
 |
|
| Inc. Angle | -57.82 |
| Emission Angle | 2.16 |
| Time | 15.0 |
| Resolution | 0.56 |
| Tycho 18 Stereo |
|---|
 |
