Pits Atlas: Tycho 29a
| Impact Melt pit: Tycho | |
|---|---|
| Name | Tycho 29a |
| Lat. | -42.8468 |
| Long. | 348.5424 |
| Desc. | Triangular pit near the top of a PRF, northeasternmost and most vertical-walled of a line of three pits. The pits have no collapses between them, and are spaced ~12m apart. There is a set of fractures in line with these pits. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Tycho |
| Funnel Min. Diam. | 12 |
| Funnel Max. Diam. | 20 |
| Inner Min. Diam. | 9 |
| Inner Max. Diam. | 18 |
| Azimuth | 50 |
| Depth | >10.0 |
| Depth 1 | >10.0 |
| Depth 2 | >9.0 |
| Depth 3 | N/A |
| Best Stereo Left | M1206074763L |
| Best Stereo Right | M1206074763L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | Y |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | Y |
| Colinear Depressions | N |
| Colinear Fractures | N |

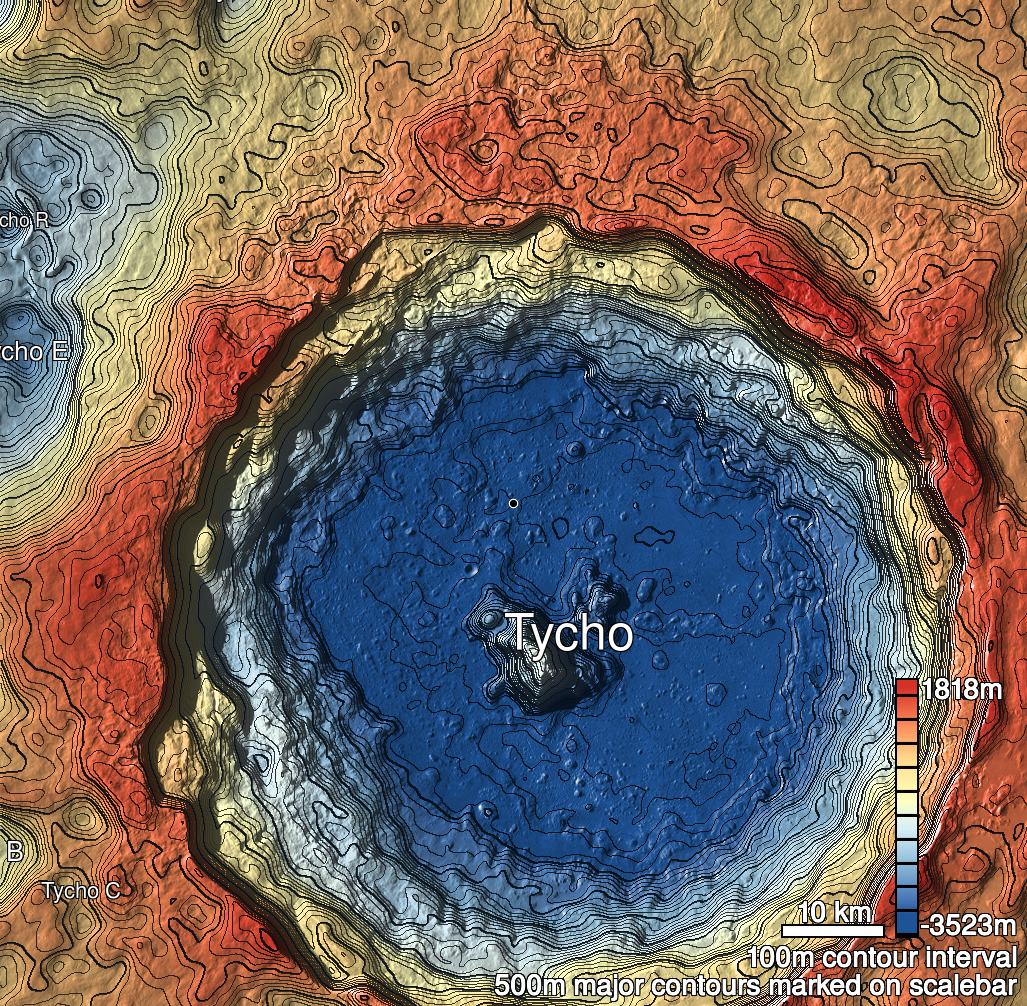

| Tycho 29a Shaded Relief | |
|---|---|
 |
| M127008391R | |
|---|---|
 |
|
| Line | 35703 |
| Sample | 3478 |
| Inc. Angle | 51.13 |
| Emission Angle | 2.49 |
| Time | 10.1 |
| Resolution | 0.49 |
| M139979870L | |
|---|---|
 |
|
| Inc. Angle | -41.55 |
| Emission Angle | 2.12 |
| Time | 12.36 |
| Resolution | 0.51 |
| Tycho 29a Stereo |
|---|
 |
