Pits Atlas: Tycho 29c
| Impact Melt pit: Tycho | |
|---|---|
| Name | Tycho 29c |
| Lat. | -42.8478 |
| Long. | 348.5405 |
| Desc. | Irregular pit at base of a PRF, widest and southwesternmost of the chain of three. There are several 2-6m boulders covering the floor. The south wall is a smooth slope from surface to floor. Pit is ~70m NE of nearest fractures. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Tycho |
| Funnel Min. Diam. | 35 |
| Funnel Max. Diam. | 37 |
| Inner Min. Diam. | 17 |
| Inner Max. Diam. | 25 |
| Azimuth | 50 |
| Depth | 10.0 |
| Depth 1 | 11.3 |
| Depth 2 | 9.0 |
| Depth 3 | N/A |
| Best Stereo Left | M1206074763L |
| Best Stereo Right | M1206074763L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depths are to same point, but Depth 2 is from lower point on rim than Depth 1. |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | Y |
| Beside Dome | Y |
| In Depression | Y? |
| Colinear Pits | Y |
| Colinear Depressions | N |
| Colinear Fractures | Y |

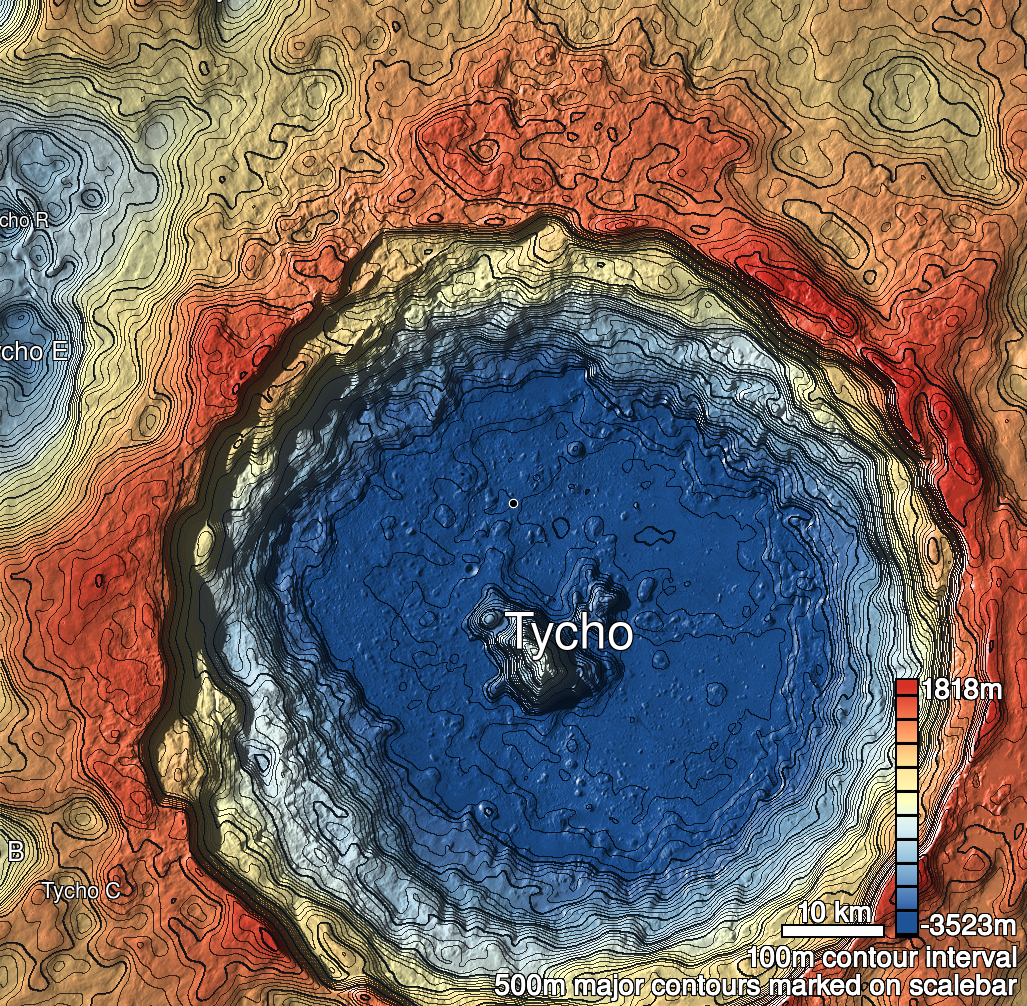

| Tycho 29c Shaded Relief | |
|---|---|
 |

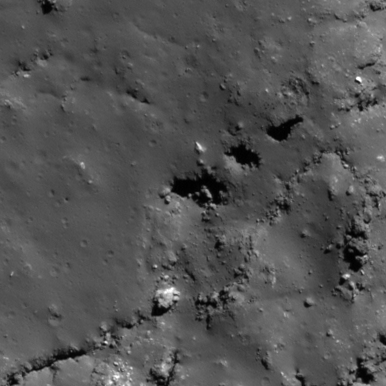

| M127008391R | |
|---|---|
 |
|
| Line | 35639 |
| Sample | 3573 |
| Inc. Angle | 51.13 |
| Emission Angle | 2.54 |
| Time | 10.1 |
| Resolution | 0.49 |

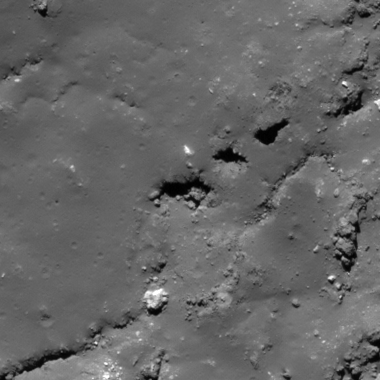

| M139979870L | |
|---|---|
 |
|
| Inc. Angle | -41.55 |
| Emission Angle | 2.17 |
| Time | 12.36 |
| Resolution | 0.51 |

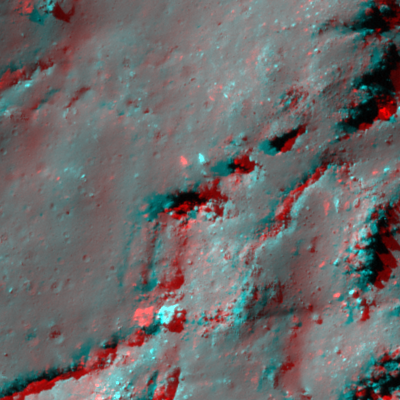

| Tycho 29c Stereo |
|---|
 |
