Pits Atlas: Virtanen F 1
| Impact Melt pit: Virtanen F | |
|---|---|
| Name | Virtanen F 1 |
| Lat. | 15.7946 |
| Long. | 177.2069 |
| Desc. | Complex pit (probably) in the NW wall of a PRF. SE wall is a multi-tiered cliff (depth from top layer of cliff is ~32m)- probable inner pit is rather small, and hidden in shadow in most images, including stereo pair. N and W inner rims are barely visible from lighting, but seem to cast a bit of shadow in one or two images. A few surface fractures in the general area, but no other collapses. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Virtanen F |
| Funnel Min. Diam. | 42 |
| Funnel Max. Diam. | 49 |
| Inner Min. Diam. | 14 |
| Inner Max. Diam. | 20 |
| Azimuth | 55 |
| Depth | 17.0 |
| Depth 1 | 16.8 |
| Depth 2 | 15.8 |
| Depth 3 | 17.8 |
| Best Stereo Left | M158795840L |
| Best Stereo Right | M158795840L |
| DTMs | NAC_DTM_FRESHMELT1 |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | N? |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y? |
| In Dome | N? |
| Beside Dome | N |
| In Depression | Y? |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

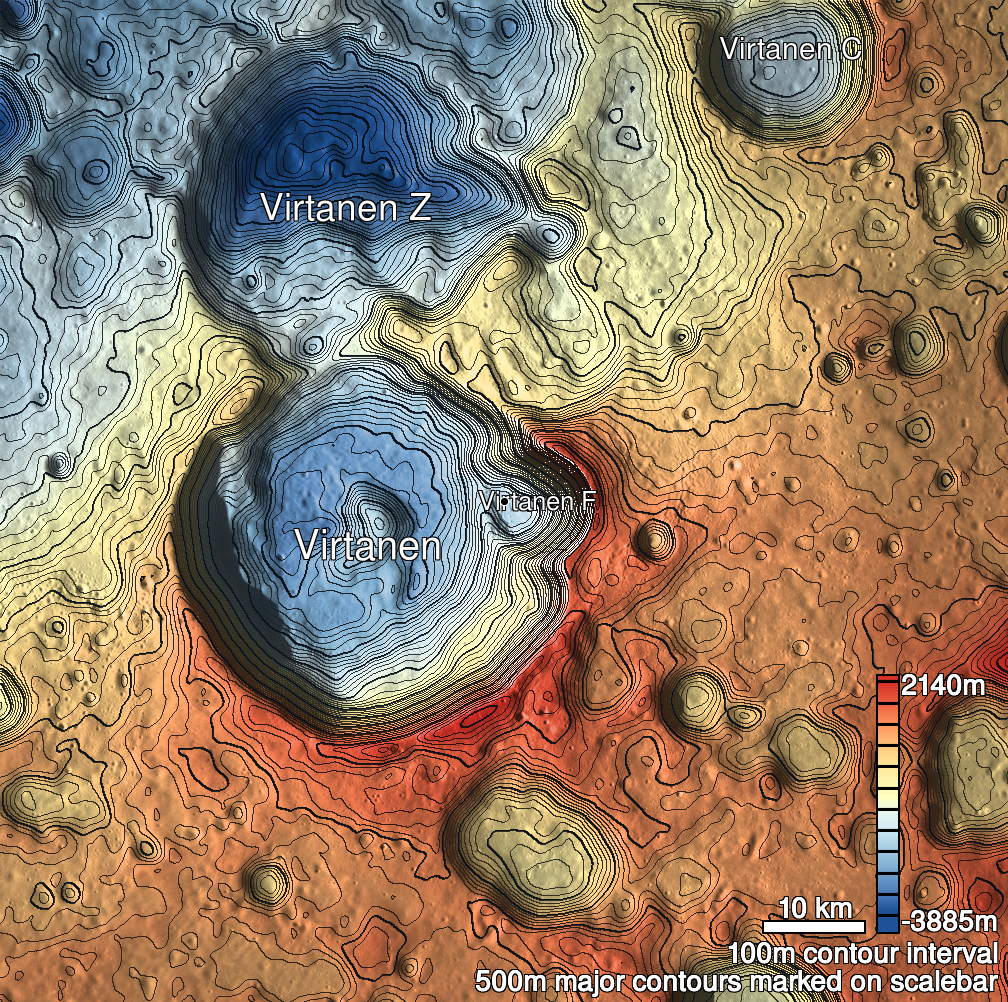

| Virtanen F 1 Shaded Relief | |
|---|---|
 |
| M156435317L | |
|---|---|
 |
|
| Line | 35405 |
| Sample | 955 |
| Inc. Angle | 16.28 |
| Emission Angle | -2.66 |
| Time | 11.47 |
| Resolution | 0.58 |
| M1115371417R | |
|---|---|
 |
|
| Inc. Angle | -31.51 |
| Emission Angle | 0.1 |
| Time | 13.9 |
| Resolution | 1.28 |
| M1166004711L | |
|---|---|
 |
|
| Inc. Angle | 29.1 |
| Emission Angle | -0.66 |
| Time | 10.38 |
| Resolution | 1.27 |
| Virtanen F 1 Stereo |
|---|
 |
