Pits Atlas: Wood T 1b
| Impact Melt pit: Wood T | |
|---|---|
| Name | Wood T 1b |
| Lat. | 43.8862 |
| Long. | 235.7613 |
| Desc. | Very circular pit- no image shows much of the floor, but it looks like an absolutely classic Tranquillitatis-style pit with minimal funnel. In stereo image, no visible back wall at 12 degree slew. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Wood T |
| Funnel Min. Diam. | 18 |
| Funnel Max. Diam. | 23 |
| Inner Min. Diam. | 14 |
| Inner Max. Diam. | 17 |
| Azimuth | 30 |
| Depth | 11.0 |
| Depth 1 | 9.5 |
| Depth 2 | 12.0 |
| Depth 3 | 10.8 |
| Best Stereo Left | M143078925L |
| Best Stereo Right | M143078925L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depths 1 and 2 are from stereo pair M143072142L/M143078925L (the only images which unambiguously show floor), which have emission angles of 8.8 and 12.8 degrees, respectively. M193783245R and M1158545901R are lit by crater wall-shine. |
| Entrance Ramp | N |
| Overhang | Y? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | N |
| In Dome | Y |
| Beside Dome | Y? |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

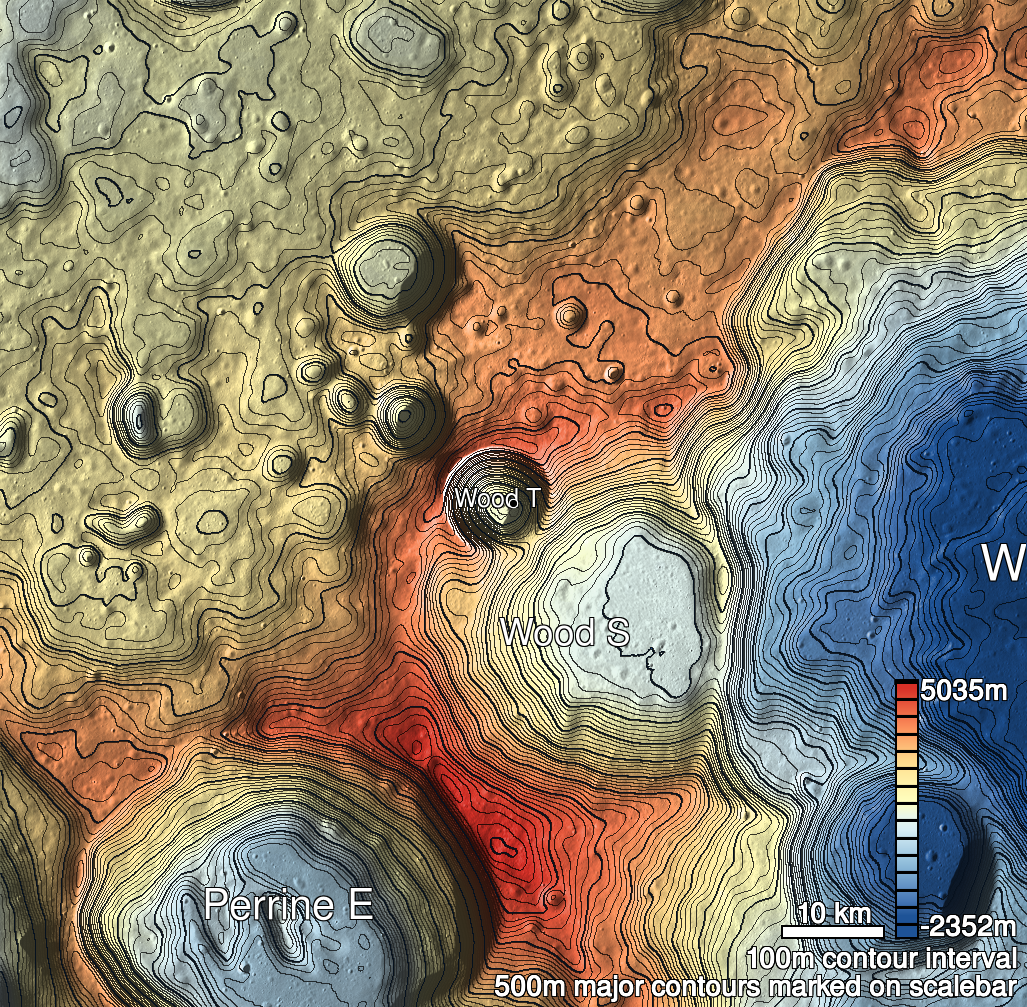

| Wood T 1b Shaded Relief | |
|---|---|
 |

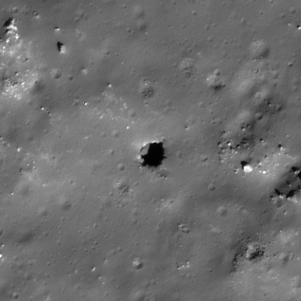

| M143072142L | |
|---|---|
 |
|
| Line | 27283 |
| Sample | 3907 |
| Inc. Angle | 53.18 |
| Emission Angle | 8.82 |
| Time | 9.91 |
| Resolution | 0.64 |
| M143078925L | |
|---|---|
 |
|
| Inc. Angle | 52.73 |
| Emission Angle | -12.8 |
| Time | 9.97 |
| Resolution | 0.66 |
| M1145626072L | |
|---|---|
 |
|
| Inc. Angle | -53.16 |
| Emission Angle | 1.62 |
| Time | 14.41 |
| Resolution | 1.47 |

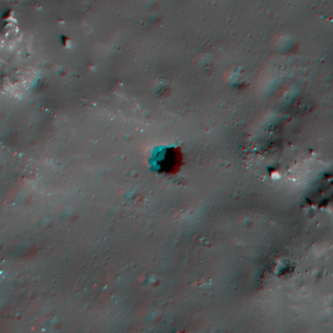

| Wood T 1b Stereo |
|---|
 |
