Pits Atlas: Aristarchus 4
| Impact Melt pit: Aristarchus | |
|---|---|
| Name | Aristarchus 4 |
| Lat. | 23.914 |
| Long. | 312.3913 |
| Desc. | Roughly square pit with no breaches in the walls, ~10 m from the base of a bouldery PRF. Floor appears somewhat rounded up on the sides. Several other depressions and collapses nearby- Aristarchus 8 is 250 m SE. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Aristarchus |
| Funnel Min. Diam. | 33 |
| Funnel Max. Diam. | 39 |
| Inner Min. Diam. | 22 |
| Inner Max. Diam. | 23 |
| Azimuth | 50 |
| Depth | 8.0 |
| Depth 1 | 11.4 |
| Depth 2 | 7.2 |
| Depth 3 | 6.5 |
| Best Stereo Left | M1129801944R |
| Best Stereo Right | M1129801944R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | M1193372314R |
| Data Warning | |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | Y |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

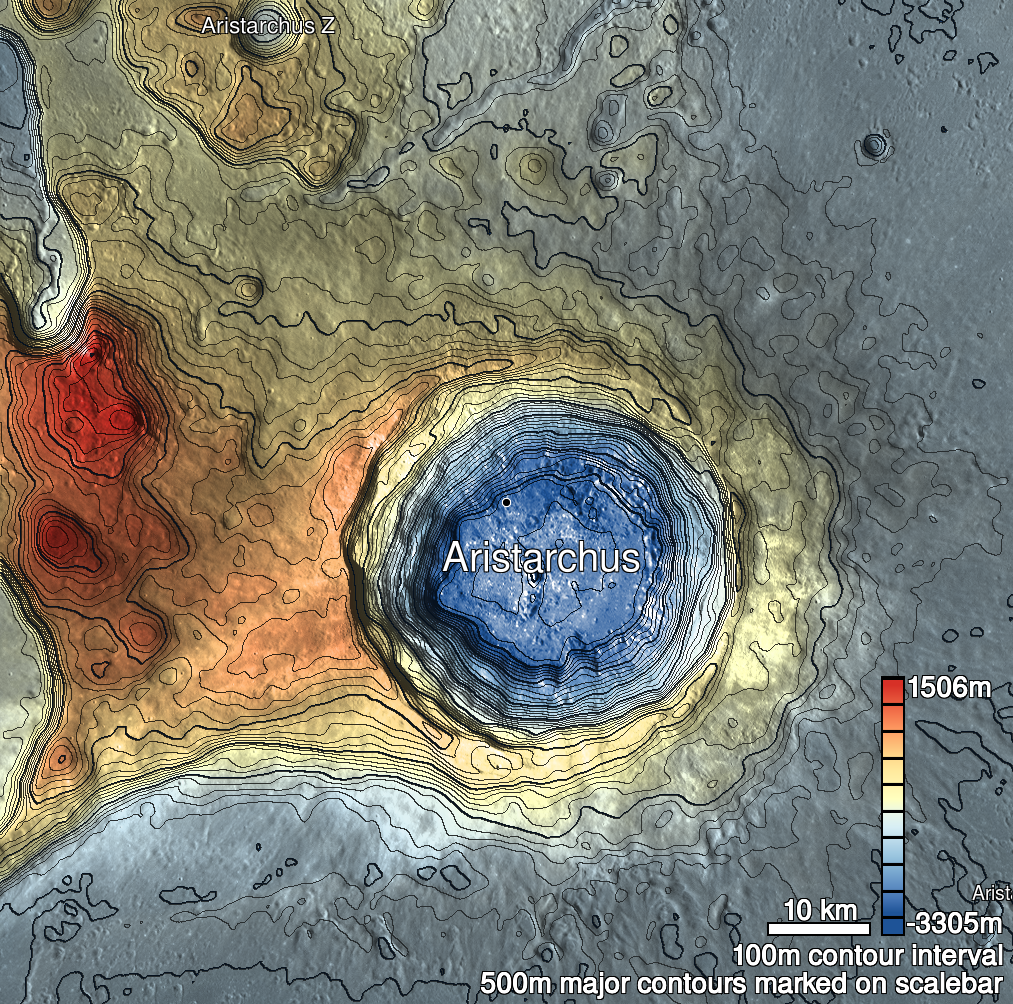

| Aristarchus 4 Shaded Relief | |
|---|---|
 |
| M109548636L | |
|---|---|
 |
|
| Line | 1966 |
| Sample | 3392 |
| Inc. Angle | 25.81 |
| Emission Angle | -1.2 |
| Time | 11.69 |
| Resolution | 0.52 |
| M114267211R | |
|---|---|
 |
|
| Inc. Angle | 62.89 |
| Emission Angle | 2.42 |
| Time | 8.03 |
| Resolution | 0.49 |
| M1099158773L | |
|---|---|
 |
|
| Inc. Angle | -45.0 |
| Emission Angle | 2.83 |
| Time | 14.55 |
| Resolution | 1.39 |
| Aristarchus 4 Stereo |
|---|
 |
