Pits Atlas: Aristarchus 6
| Impact Melt pit: Aristarchus | |
|---|---|
| Name | Aristarchus 6 |
| Lat. | 23.4657 |
| Long. | 312.4235 |
| Desc. | Elliptical pit in the (~250m wide) gap between two irregular linear collapses/fractures, and ~1 diameter NE of the base of a bouldery PRF. Very pronounced funnel, no apparent wall collapses, although south wall protrudes in a shelf ~halfway down. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Aristarchus |
| Funnel Min. Diam. | 18 |
| Funnel Max. Diam. | 24 |
| Inner Min. Diam. | 7 |
| Inner Max. Diam. | 12 |
| Azimuth | 120 |
| Depth | 11.0 |
| Depth 1 | 11.6 |
| Depth 2 | 10.8 |
| Depth 3 | 9.8 |
| Best Stereo Left | M1129801944R |
| Best Stereo Right | M1129801944R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | Y |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | Y? |
| Colinear Fractures | N |

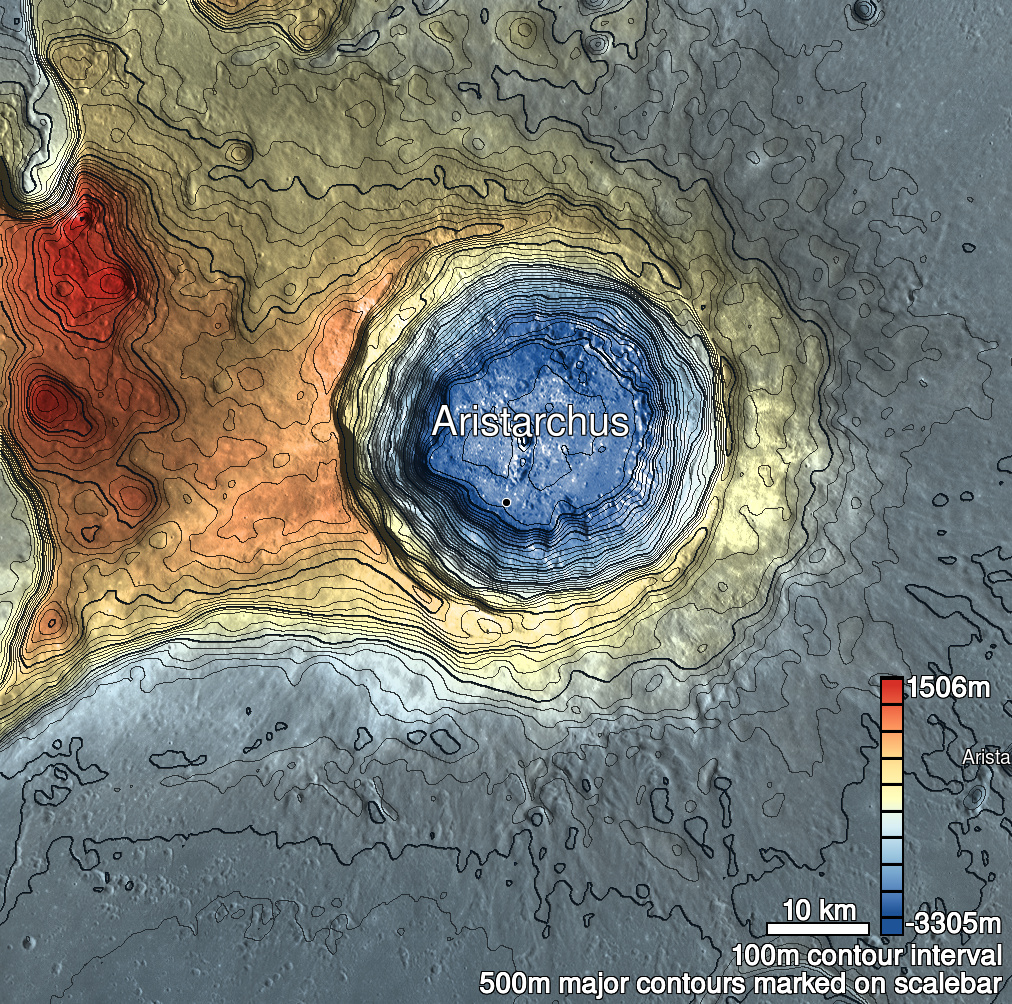

| Aristarchus 6 Shaded Relief | |
|---|---|
 |

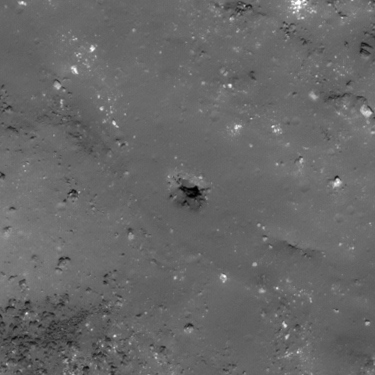

| M109548636L | |
|---|---|
 |
|
| Line | 26784 |
| Sample | 1456 |
| Inc. Angle | 25.37 |
| Emission Angle | -2.34 |
| Time | 11.7 |
| Resolution | 0.52 |

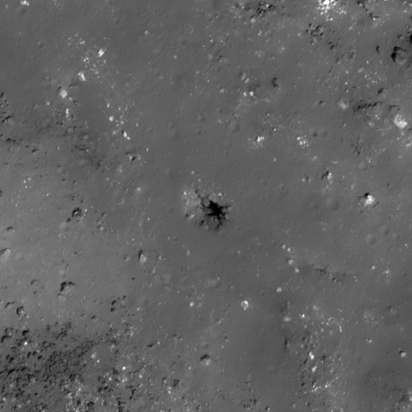

| M157906985R | |
|---|---|
 |
|
| Inc. Angle | 32.9 |
| Emission Angle | 2.23 |
| Time | 10.33 |
| Resolution | 0.42 |
| M1193372314R | |
|---|---|
 |
|
| Inc. Angle | -27.0 |
| Emission Angle | -1.43 |
| Time | 12.76 |
| Resolution | 1.07 |
| Aristarchus 6 Stereo |
|---|
 |
