Pits Atlas: Aristarchus 9
| Impact Melt pit: Aristarchus | |
|---|---|
| Name | Aristarchus 9 |
| Lat. | 23.8631 |
| Long. | 312.315 |
| Desc. | Irregular pit. South wall has a shelf/boulder sticking out part-way down, which interferes with shadow measurements. There is some texturing on the floor that implies ~0.5-2m boulders. ~300m SSE of Aristarchus 2c, and there is another pit-like depression another ~300m SSE. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Aristarchus |
| Funnel Min. Diam. | 23 |
| Funnel Max. Diam. | 25 |
| Inner Min. Diam. | 10 |
| Inner Max. Diam. | 17 |
| Azimuth | 15 |
| Depth | 7.0 |
| Depth 1 | 6.2 |
| Depth 2 | 5.8 |
| Depth 3 | 7.5 |
| Best Stereo Left | M1129801944L |
| Best Stereo Right | M1129801944L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depths 1 and 2 are very small pixel sizes (~3) |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N? |
| Colinear Depressions | N |
| Colinear Fractures | N |

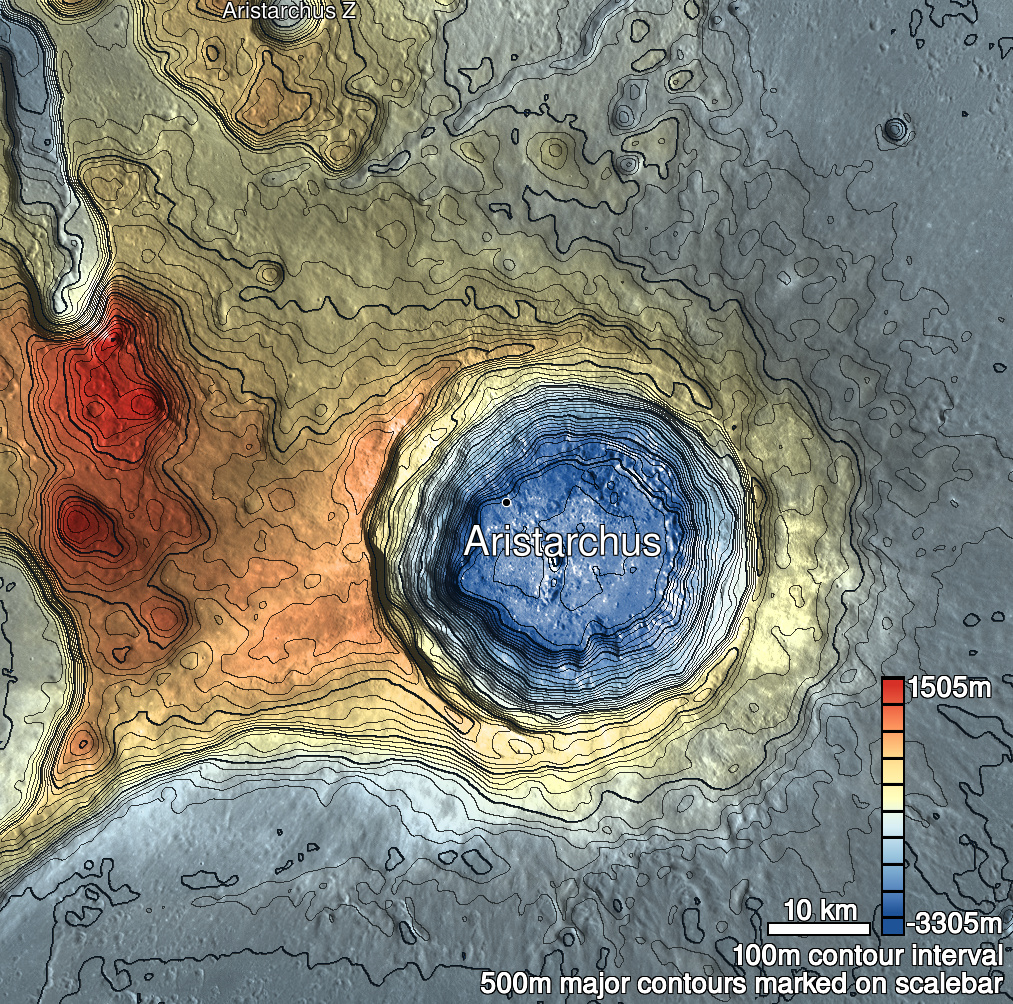

| Aristarchus 9 Shaded Relief | |
|---|---|
 |

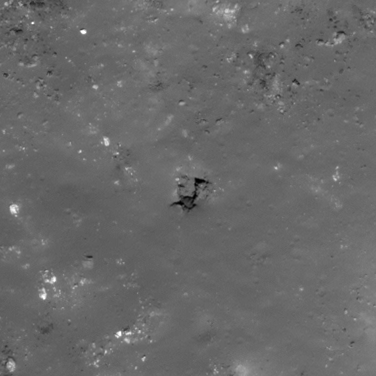

| M109548636R | |
|---|---|
 |
|
| Line | 4653 |
| Sample | 2580 |
| Inc. Angle | 25.78 |
| Emission Angle | 1.19 |
| Time | 11.69 |
| Resolution | 0.52 |
| M1193372314R | |
|---|---|
 |
|
| Inc. Angle | -27.31 |
| Emission Angle | -0.1 |
| Time | 12.75 |
| Resolution | 1.08 |
| M1129794833R | |
|---|---|
 |
|
| Inc. Angle | -46.82 |
| Emission Angle | -1.89 |
| Time | 14.7 |
| Resolution | 1.28 |
| Aristarchus 9 Stereo |
|---|
 |
