Pits Atlas: Southwest Mare Tranquillitatis Pit
| Mare pit: Mare Tranquillitatis | |
|---|---|
| Name | Southwest Mare Tranquillitatis Pit |
| Lat. | 4.1438 |
| Long. | 24.6871 |
| Desc. | Round pit, seems to have multiple levels of floor. The funnel also has multiple exposed layers showing a stairstep, and is ~20-25m deep. W side of floor is a deeper pit, Southwest Mare Tranquillitatis B. There appears to be an additional narrow level of flat non-funnel interior surface on the N wall, above the main floor. There is a wrinkle ridge 2.3 km SE (possibly also 1 km SE), pit is on the uphill side of the ridge. |
| Types | |
| Terrain | Mare |
| Host Feature | Mare Tranquillitatis |
| Funnel Min. Diam. | 80 |
| Funnel Max. Diam. | 100 |
| Inner Min. Diam. | 26 |
| Inner Max. Diam. | 32 |
| Azimuth | 165 |
| Depth | 25.0 |
| Depth 1 | 27.9 |
| Depth 2 | 22.8 |
| Depth 3 | >25.0 |
| Best Stereo Left | M1341063036R |
| Best Stereo Right | M1341063036R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Stereo is accidental and does not have matching lighting. Depths are to outer of the concentric pits. |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

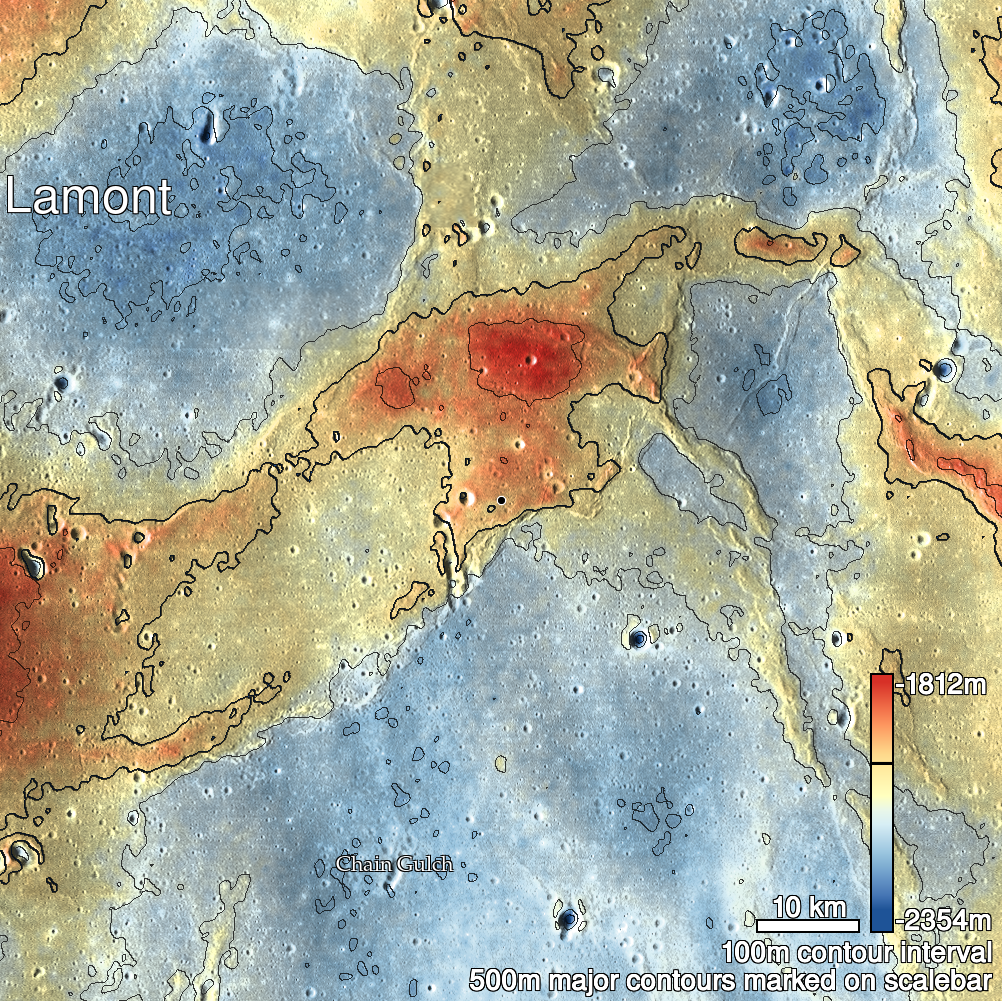

| Southwest Mare Tranquillitatis Pit Shaded Relief | |
|---|---|
 |
| M1345757107L | |
|---|---|
 |
|
| Line | 21851 |
| Sample | 4015 |
| Inc. Angle | 17.68 |
| Emission Angle | -0.85 |
| Time | 10.86 |
| Resolution | 0.88 |
| M1297582135L | |
|---|---|
 |
|
| Inc. Angle | -27.83 |
| Emission Angle | 1.43 |
| Time | 13.85 |
| Resolution | 0.91 |
| M1317564208L | |
|---|---|
 |
|
| Inc. Angle | 34.02 |
| Emission Angle | -0.85 |
| Time | 9.75 |
| Resolution | 0.77 |
| Southwest Mare Tranquillitatis Pit Stereo |
|---|
 |
