Pits Atlas: Aristillus 3
| Impact Melt pit: Aristillus | |
|---|---|
| Name | Aristillus 3 |
| Lat. | 33.5169 |
| Long. | 0.9128 |
| Desc. | Generally round pit with extension to NE where wall collapse provides a gentle slope from surroundings to floor. Floor is fairly smooth, with one 3m boulder and one 2m crater. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Aristillus |
| Funnel Min. Diam. | 34 |
| Funnel Max. Diam. | 51 |
| Inner Min. Diam. | 19 |
| Inner Max. Diam. | 33 |
| Azimuth | 40 |
| Depth | 8.0 |
| Depth 1 | 4.7 |
| Depth 2 | 8.6 |
| Depth 3 | 11.8 |
| Best Stereo Left | |
| Best Stereo Right | |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depth 3 may be from funnel. Funnel to NE slope is ~9m, from M1188347051L. |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

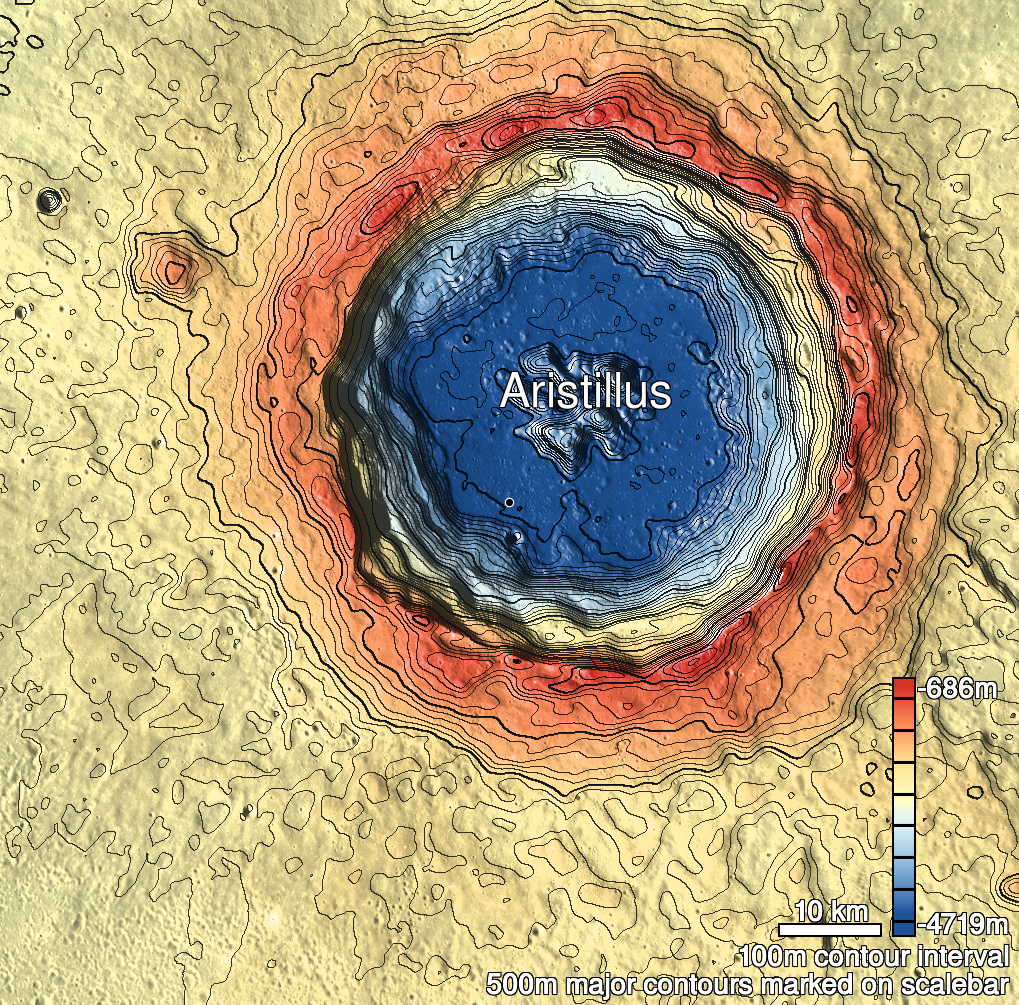

| Aristillus 3 Shaded Relief | |
|---|---|
 |
| M111592038R | |
|---|---|
 |
|
| Line | 46391 |
| Sample | 1967 |
| Inc. Angle | 43.72 |
| Emission Angle | 0.83 |
| Time | 10.15 |
| Resolution | 0.52 |
| M1118880788R | |
|---|---|
 |
|
| Inc. Angle | 34.73 |
| Emission Angle | 0.29 |
| Time | 11.11 |
| Resolution | 1.38 |
| M190595203R | |
|---|---|
 |
|
| Inc. Angle | 52.71 |
| Emission Angle | 2.43 |
| Time | 9.07 |
| Resolution | 1.52 |
