Pits Atlas: Catalán B 1
| Impact Melt pit: Catalán B | |
|---|---|
| Name | Catalán B 1 |
| Lat. | -45.6547 |
| Long. | 271.426 |
| Desc. | Irregular pit at the peak of a PRF. Floor appears lower than terrain surrounding the PRF. No other collapses nearby. No overhang on west side. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Catalán B |
| Funnel Min. Diam. | 19 |
| Funnel Max. Diam. | 32 |
| Inner Min. Diam. | 15 |
| Inner Max. Diam. | 26 |
| Azimuth | 175 |
| Depth | 7.0 |
| Depth 1 | 7.5 |
| Depth 2 | 7.2 |
| Depth 3 | N/A |
| Best Stereo Left | M1147715124L |
| Best Stereo Right | M1147715124L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N? |
| In Dome | Y |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

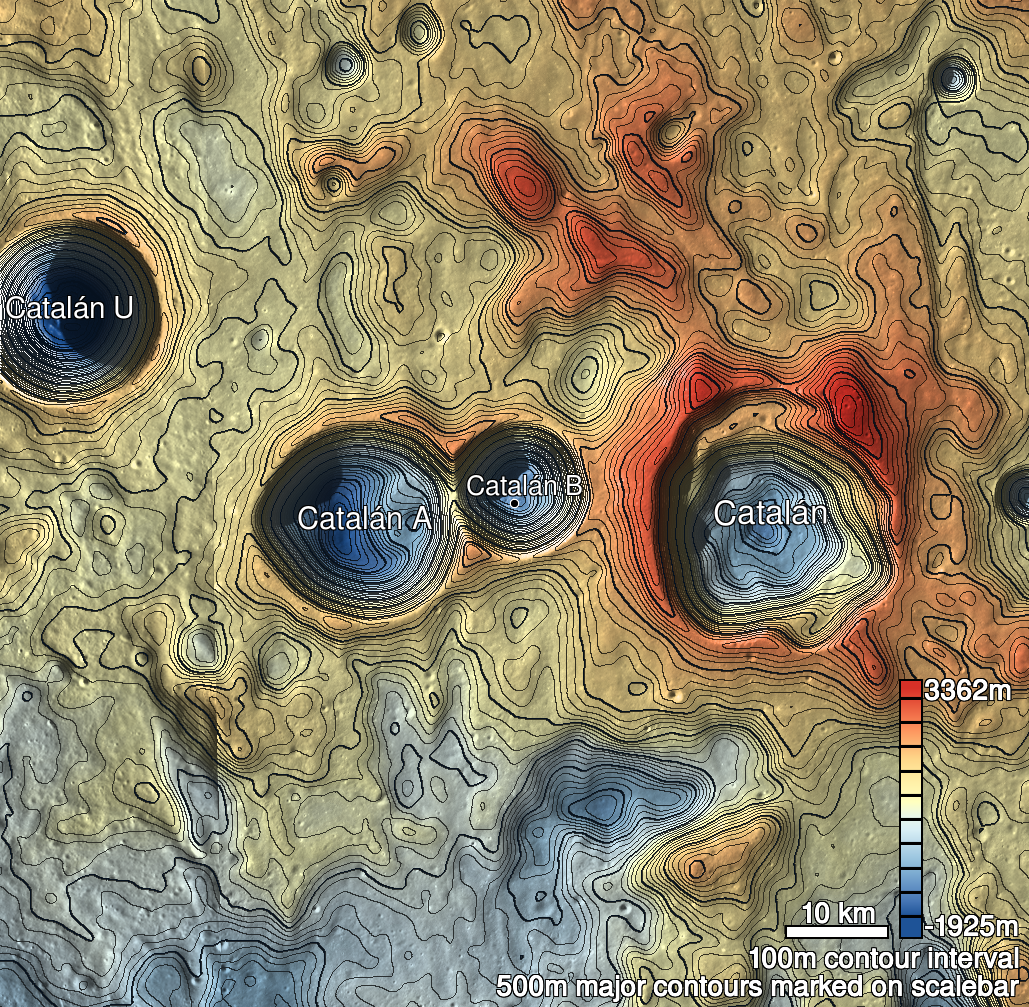

| Catalán B 1 Shaded Relief | |
|---|---|
 |
| M1196023180R | |
|---|---|
 |
|
| Line | 11434 |
| Sample | 4389 |
| Inc. Angle | 47.05 |
| Emission Angle | 2.25 |
| Time | 11.0 |
| Resolution | 0.47 |
| M1165415996R | |
|---|---|
 |
|
| Inc. Angle | 46.48 |
| Emission Angle | 0.6 |
| Time | 11.11 |
| Resolution | 0.64 |
| Catalán B 1 Stereo |
|---|
 |
