Pits Atlas: Copernicus 1
| Impact Melt pit: Copernicus | |
|---|---|
| Name | Copernicus 1 |
| Lat. | 9.9277 |
| Long. | 340.7455 |
| Desc. | Elliptical pit in a semi-circular funnel; long axes of both are oriented ~N-S. Floor is flat and featureless, walls are vertical. No obvious other depressions in the area. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Copernicus |
| Funnel Min. Diam. | 25 |
| Funnel Max. Diam. | 31 |
| Inner Min. Diam. | 9 |
| Inner Max. Diam. | 11 |
| Azimuth | 180 |
| Depth | 8.0 |
| Depth 1 | 6.9 |
| Depth 2 | 11.8 |
| Depth 3 | 6.5 |
| Best Stereo Left | |
| Best Stereo Right | |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depth 2 is a very low-res, high-Sun image. All depths are from W wall, although a depth from a similar incidence angle and resolution, but from the E wall, gave a depth similar to Depth 2 (M1149637879L). |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | Y? |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

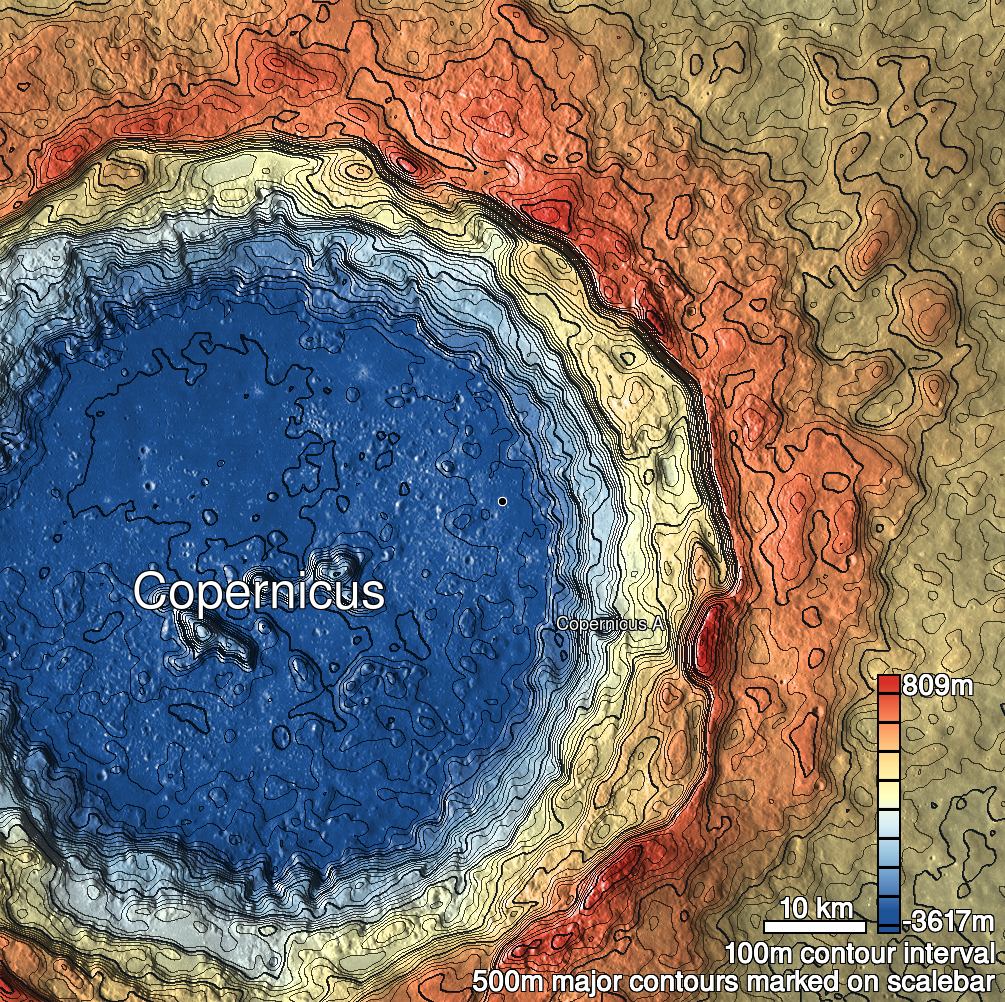

| Copernicus 1 Shaded Relief | |
|---|---|
 |
| M122339925R | |
|---|---|
 |
|
| Line | 18592 |
| Sample | 288 |
| Inc. Angle | -26.35 |
| Emission Angle | 0.17 |
| Time | 13.67 |
| Resolution | 0.43 |
| M186012733L | |
|---|---|
 |
|
| Inc. Angle | -12.29 |
| Emission Angle | 1.08 |
| Time | 12.6 |
| Resolution | 1.26 |
| M137672132L | |
|---|---|
 |
|
| Inc. Angle | -33.32 |
| Emission Angle | 1.68 |
| Time | 14.1 |
| Resolution | 0.49 |
