Pits Atlas: Copernicus 6b
| Impact Melt pit: Copernicus | |
|---|---|
| Name | Copernicus 6b |
| Lat. | 10.1048 |
| Long. | 339.9952 |
| Desc. | Smaller and southern of the Copernicus 6a pair. Roughly rectangular, with one of the diagonals (measured as max diameter) running parallel to the line of the pits. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Copernicus |
| Funnel Min. Diam. | 30 |
| Funnel Max. Diam. | 55 |
| Inner Min. Diam. | 8 |
| Inner Max. Diam. | 10 |
| Azimuth | 145 |
| Depth | 13.0 |
| Depth 1 | >12.0 |
| Depth 2 | 14.4 |
| Depth 3 | 11.9 |
| Best Stereo Left | M144755352L |
| Best Stereo Right | M144755352L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | M168333206L |
| Data Warning | All depths are from very high Sun. Inner pit is mesured along diagonals, not rectilinearly. |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | Y |
| In Depression | Y |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

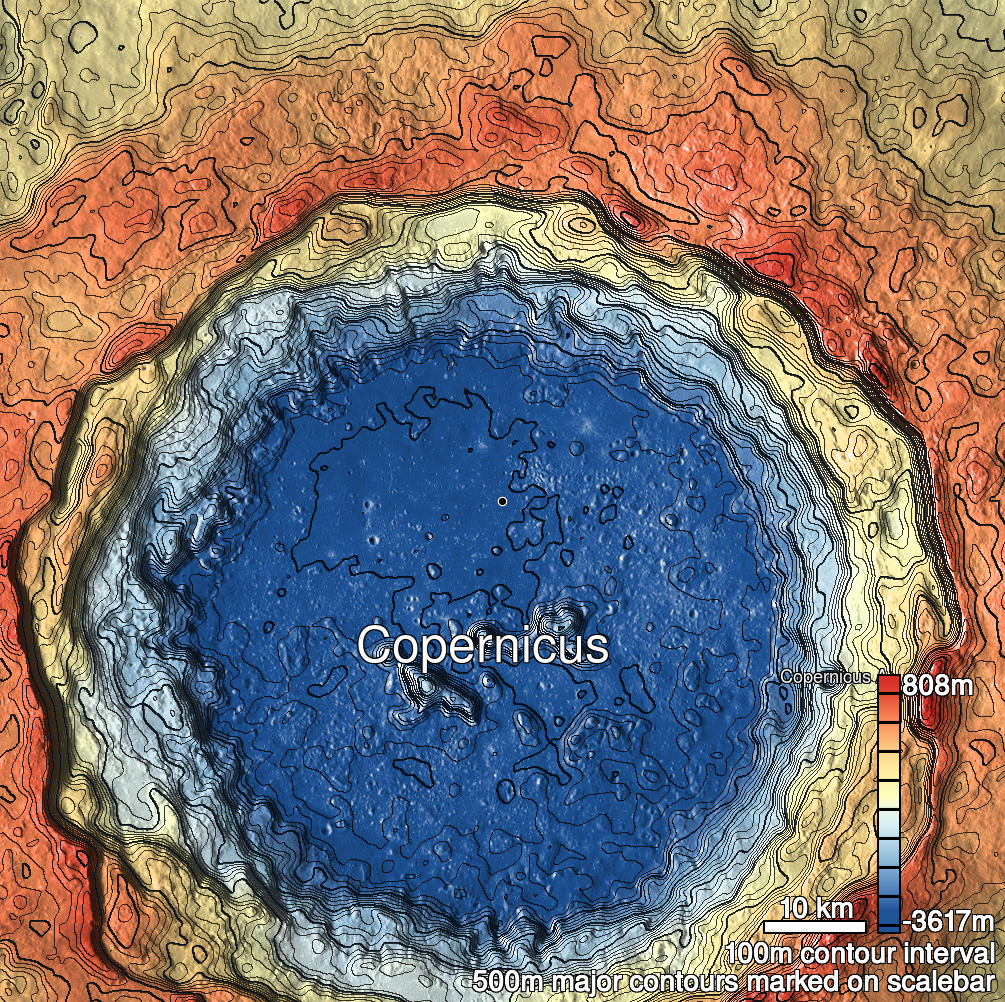

| Copernicus 6b Shaded Relief | |
|---|---|
 |
| M142394466R | |
|---|---|
 |
|
| Line | 1004 |
| Sample | 4230 |
| Inc. Angle | 25.24 |
| Emission Angle | 2.16 |
| Time | 10.5 |
| Resolution | 0.49 |
| M1103695396L | |
|---|---|
 |
|
| Inc. Angle | 17.29 |
| Emission Angle | -0.91 |
| Time | 11.12 |
| Resolution | 1.21 |
| M109365462L | |
|---|---|
 |
|
| Inc. Angle | 11.93 |
| Emission Angle | -0.88 |
| Time | 11.82 |
| Resolution | 0.52 |
| Copernicus 6b Stereo |
|---|
 |
