Pits Atlas: Copernicus 11
| Impact Melt pit: Copernicus | |
|---|---|
| Name | Copernicus 11 |
| Lat. | 9.9726 |
| Long. | 340.7284 |
| Desc. | Irregular pit in a probable N-S trending depression. Some other linear depressions running parallel? Cannot tell for certain if there is a visible floor- possibly in NE corner in M122339925L and M186012733L. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Copernicus |
| Funnel Min. Diam. | 23 |
| Funnel Max. Diam. | 28 |
| Inner Min. Diam. | 4 |
| Inner Max. Diam. | 8 |
| Azimuth | 130 |
| Depth | 11.0 |
| Depth 1 | 10.7 |
| Depth 2 | 9.6 |
| Depth 3 | 14.0 |
| Best Stereo Left | |
| Best Stereo Right | |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | M1149637879L |
| Data Warning | U3 is very high-Sun and low-resolution |
| Entrance Ramp | N? |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | Y? |
| In Dome | N? |
| Beside Dome | N |
| In Depression | Y? |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

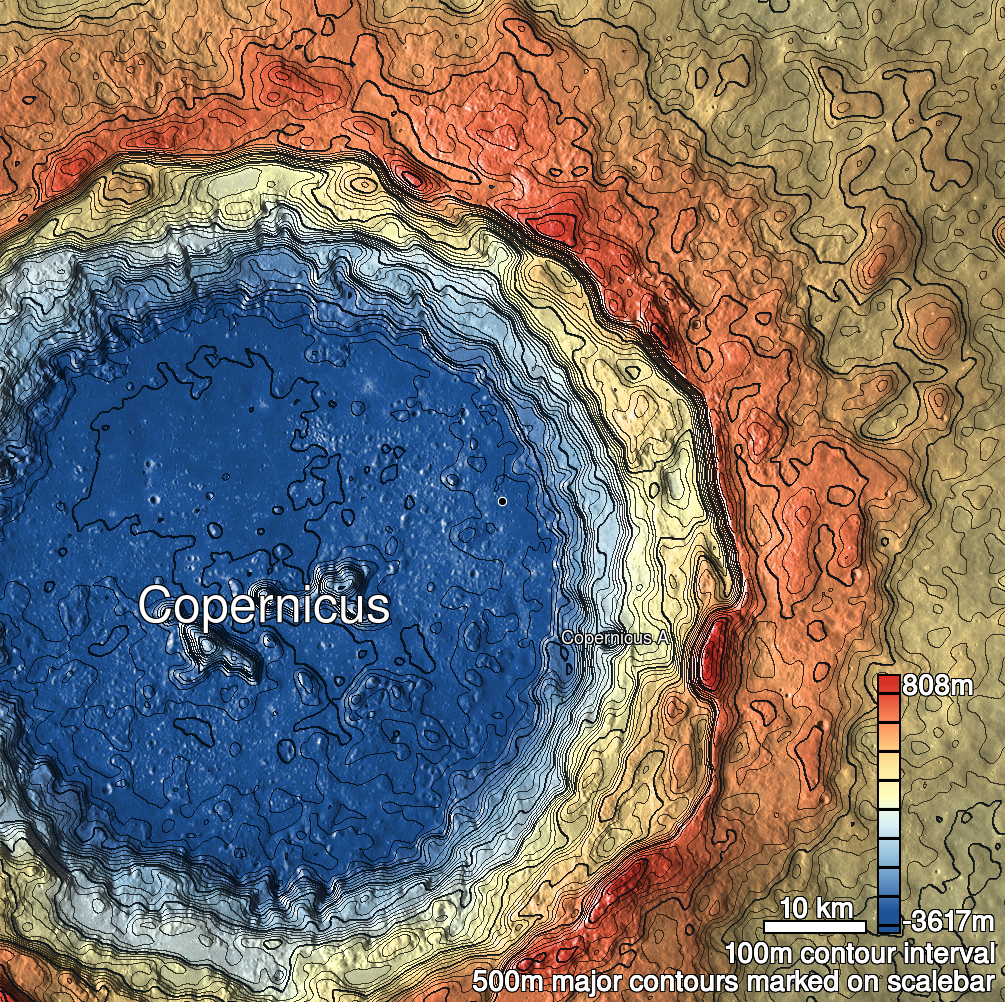

| Copernicus 11 Shaded Relief | |
|---|---|
 |
| M122339925L | |
|---|---|
 |
|
| Line | 21178 |
| Sample | 4027 |
| Inc. Angle | -26.35 |
| Emission Angle | 0.83 |
| Time | 13.67 |
| Resolution | 0.43 |
| M137672132L | |
|---|---|
 |
|
| Inc. Angle | -33.32 |
| Emission Angle | 2.3 |
| Time | 14.1 |
| Resolution | 0.49 |
| M186012733L | |
|---|---|
 |
|
| Inc. Angle | -12.31 |
| Emission Angle | 1.33 |
| Time | 12.6 |
| Resolution | 1.26 |
