Pits Atlas: Mare Ingenii Pit
| Mare pit: Mare Ingenii | |
|---|---|
| Name | Mare Ingenii Pit |
| Lat. | -35.9494 |
| Long. | 166.0559 |
| Desc. | Elliptical pit with a very pronounced funnel exposing numerous coherent layers. There is a ~40m diameter crater on the wider E edge of the funnel, which may have triggered some expansion of the funnel on that side. The floor is higher on the E side than the W, and slopes down from N to S. Depth from rim to floor ranges from 15-65 m, and the funnel is ~40m deep on the E side (~20-30 on the W). There is an overhang of at least 10-20 m on both the W and S sides. No unusual surface features in the area, although there is a 600m crater ~200m N of the pit. |
| Types | |
| Terrain | Mare |
| Host Feature | Mare Ingenii |
| Funnel Min. Diam. | 157 |
| Funnel Max. Diam. | 180 |
| Inner Min. Diam. | 71 |
| Inner Max. Diam. | 104 |
| Azimuth | 30 |
| Depth | 55.0 |
| Depth 1 | N/A |
| Depth 2 | N/A |
| Depth 3 | N/A |
| Best Stereo Left | M1117792640R |
| Best Stereo Right | M1117792640R |
| DTMs | |
| Clipping Width | 300 |
| Other IMGs | |
| Data Warning | Depth is determined from stereo modelling; image 1/2/3 are merely useful views |
| Entrance Ramp | N |
| Overhang | Y |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

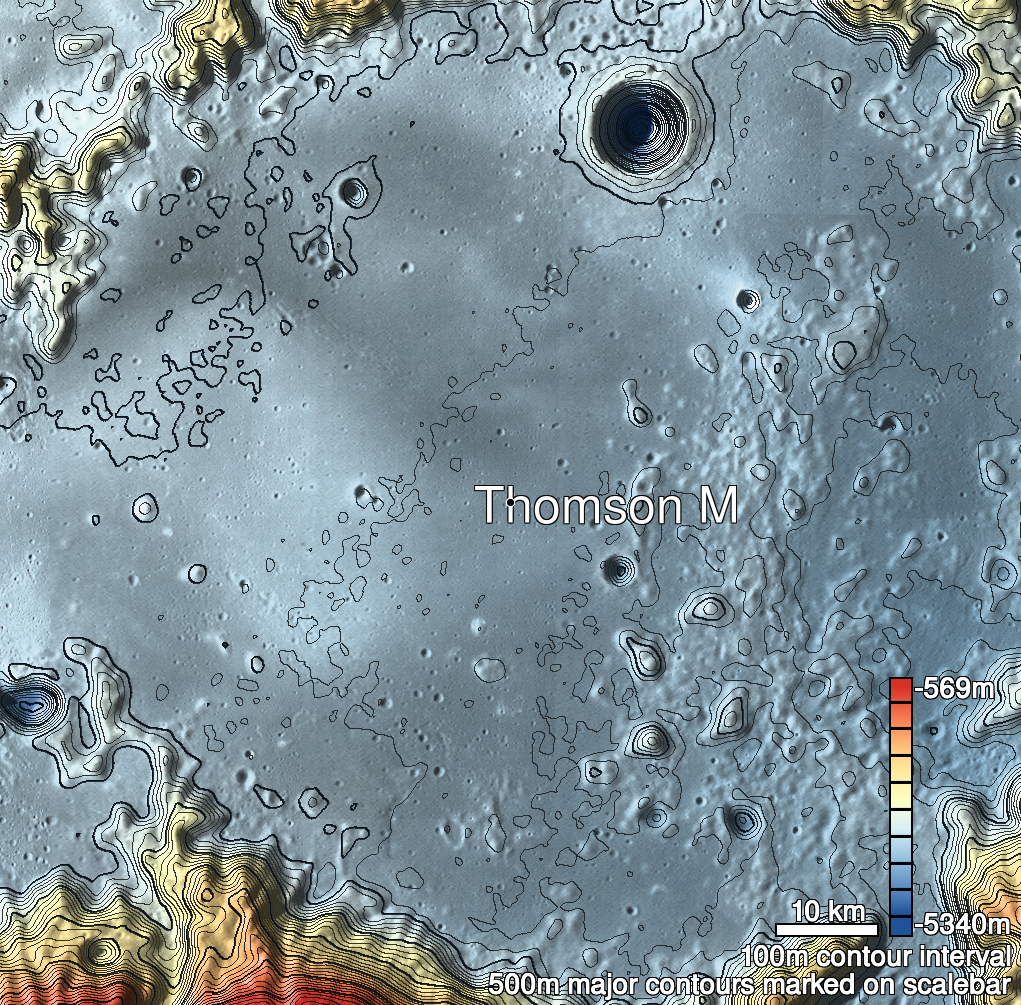

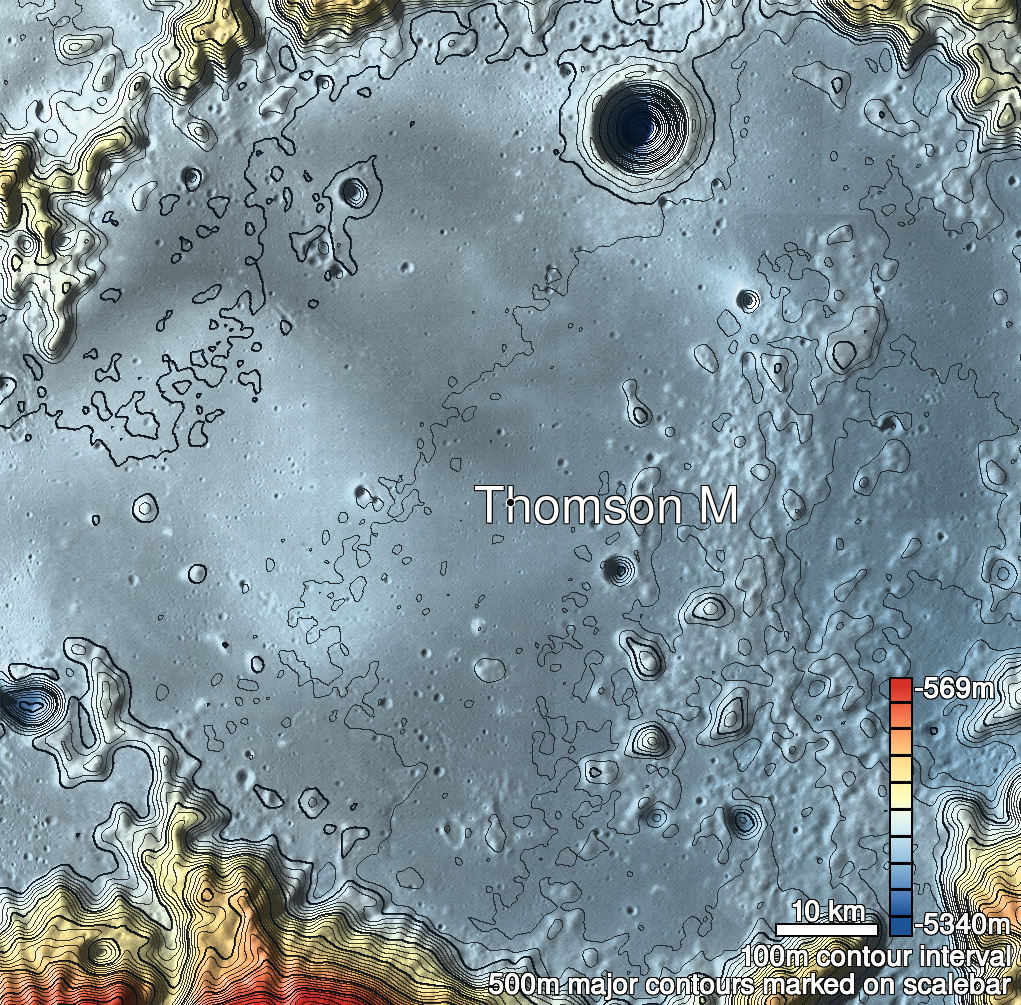

| Mare Ingenii Pit Shaded Relief | |
|---|---|
 |
| M1227298727R | |
|---|---|
 |
|
| Line | 17531 |
| Sample | 1605 |
| Inc. Angle | 43.98 |
| Emission Angle | 0.62 |
| Time | 10.18 |
| Resolution | 0.62 |
| M171835900L | |
|---|---|
 |
|
| Inc. Angle | 34.58 |
| Emission Angle | -0.44 |
| Time | 11.85 |
| Resolution | 0.69 |
| M138819477R | |
|---|---|
 |
|
| Inc. Angle | -38.81 |
| Emission Angle | -0.72 |
| Time | 13.27 |
| Resolution | 0.68 |
| Mare Ingenii Pit Stereo |
|---|
 |
