Pits Atlas: Copernicus 24
| Impact Melt pit: Copernicus | |
|---|---|
| Name | Copernicus 24 |
| Lat. | 10.181 |
| Long. | 340.4814 |
| Desc. | Semicircular round-bottomed pit, with hints of a linear depression in line with the long axis of the pit. NW wall is a slope from rim to floor. Unclear if floor is concave on all sides, or sloped down towards the E wall (that section is in shadow in the stereo images). Many large blocks on the floor. There is a mound ~200m W, and a suspiciously deep depression (collapse?) ~100m SE along the possible linear depression. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Copernicus |
| Funnel Min. Diam. | 70 |
| Funnel Max. Diam. | 130 |
| Inner Min. Diam. | 52 |
| Inner Max. Diam. | 85 |
| Azimuth | 145 |
| Depth | 16.0 |
| Depth 1 | 15.3 |
| Depth 2 | 19.5 |
| Depth 3 | 13.3 |
| Best Stereo Left | M1206153124R |
| Best Stereo Right | M1206153124R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depths are to (in order): Eastern floor, just below two large rocks; Immediately adjacent to the west wall (very high Sun); Center of floor, shadow line running just barely between the two aforementioned large rocks (possibly hitting them). |
| Entrance Ramp | Y |
| Overhang | N? |
| Nearby Pits? | N? |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

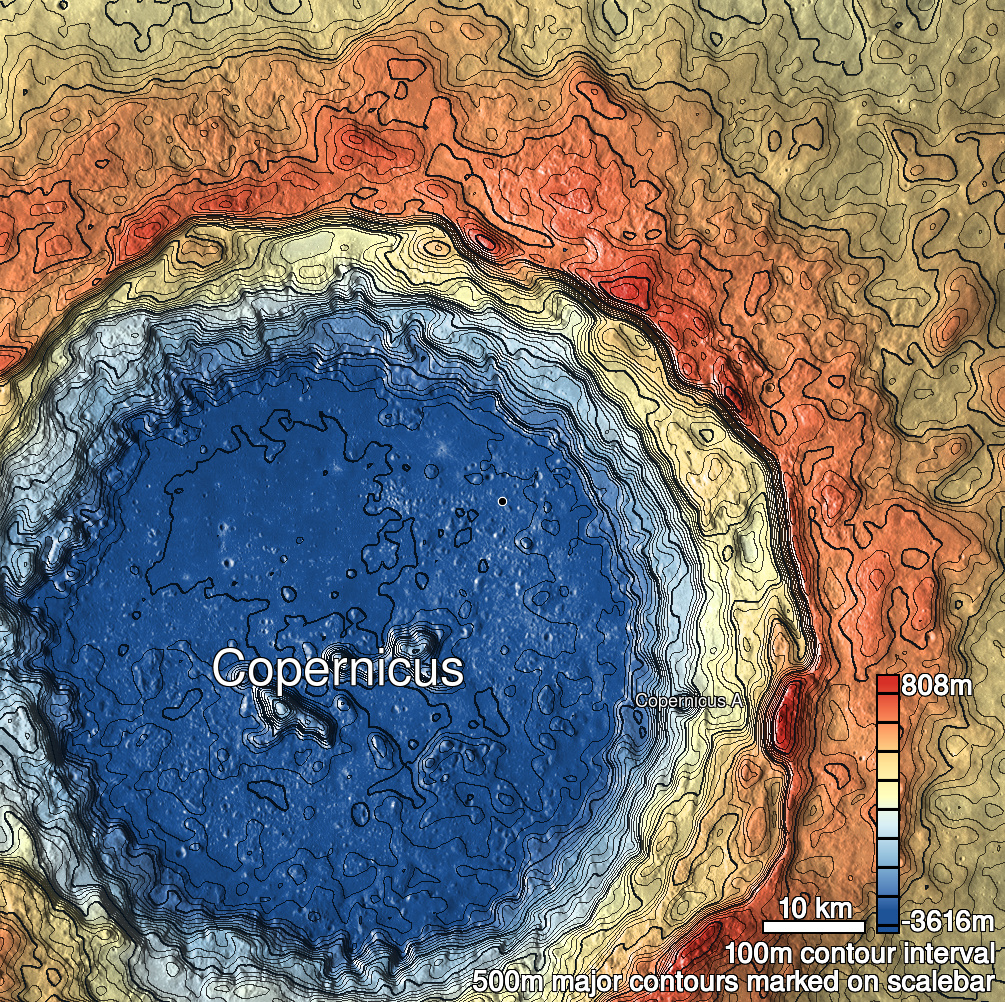

| Copernicus 24 Shaded Relief | |
|---|---|
 |
| M1127256342R | |
|---|---|
 |
|
| Line | 14058 |
| Sample | 2114 |
| Inc. Angle | -70.17 |
| Emission Angle | -0.95 |
| Time | 16.64 |
| Resolution | 1.14 |
| M1147282262L | |
|---|---|
 |
|
| Inc. Angle | -16.49 |
| Emission Angle | 1.7 |
| Time | 12.94 |
| Resolution | 1.19 |
| M1169650726L | |
|---|---|
 |
|
| Inc. Angle | 66.93 |
| Emission Angle | -2.94 |
| Time | 7.56 |
| Resolution | 1.1 |
| Copernicus 24 Stereo |
|---|
 |
