Pits Atlas: Copernicus LB4
| Impact Melt, Large Bowl pit: Copernicus | |
|---|---|
| Name | Copernicus LB4 |
| Lat. | 10.2041 |
| Long. | 339.9985 |
| Desc. | Elliptical pit with very rounded floor, and taller walls than most of the other Copernicus S_ pits (vertical walls are up to 35m high). This pit was previously identified as "Copernicus 15". Floor has numerous 5-20m boulders. Possible traversable slope at two points (NW rim and NNE rim), but paths may be blocked by boulders. Rim is mostly unbroken. There is a narrow slope down towards the rim on the SE side, reminiscent of a Type-I APC (Cushing et al. 2015), but slews do not reveal any openings above the current floor-level. |
| Types | Large Bowl |
| Terrain | Impact Melt |
| Host Feature | Copernicus |
| Funnel Min. Diam. | 340 |
| Funnel Max. Diam. | 375 |
| Inner Min. Diam. | 275 |
| Inner Max. Diam. | 320 |
| Azimuth | 65 |
| Depth | 78.0 |
| Depth 1 | 79.0 |
| Depth 2 | 77.0 |
| Depth 3 | >69.0 |
| Best Stereo Left | M1213214112R |
| Best Stereo Right | M1213214112R |
| DTMs | |
| Clipping Width | 700 |
| Other IMGs | M1103695396L, M168333206L |
| Data Warning | |
| Entrance Ramp | N? |
| Overhang | N |
| Nearby Pits? | N |
| Nearby Fractures? | N? |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

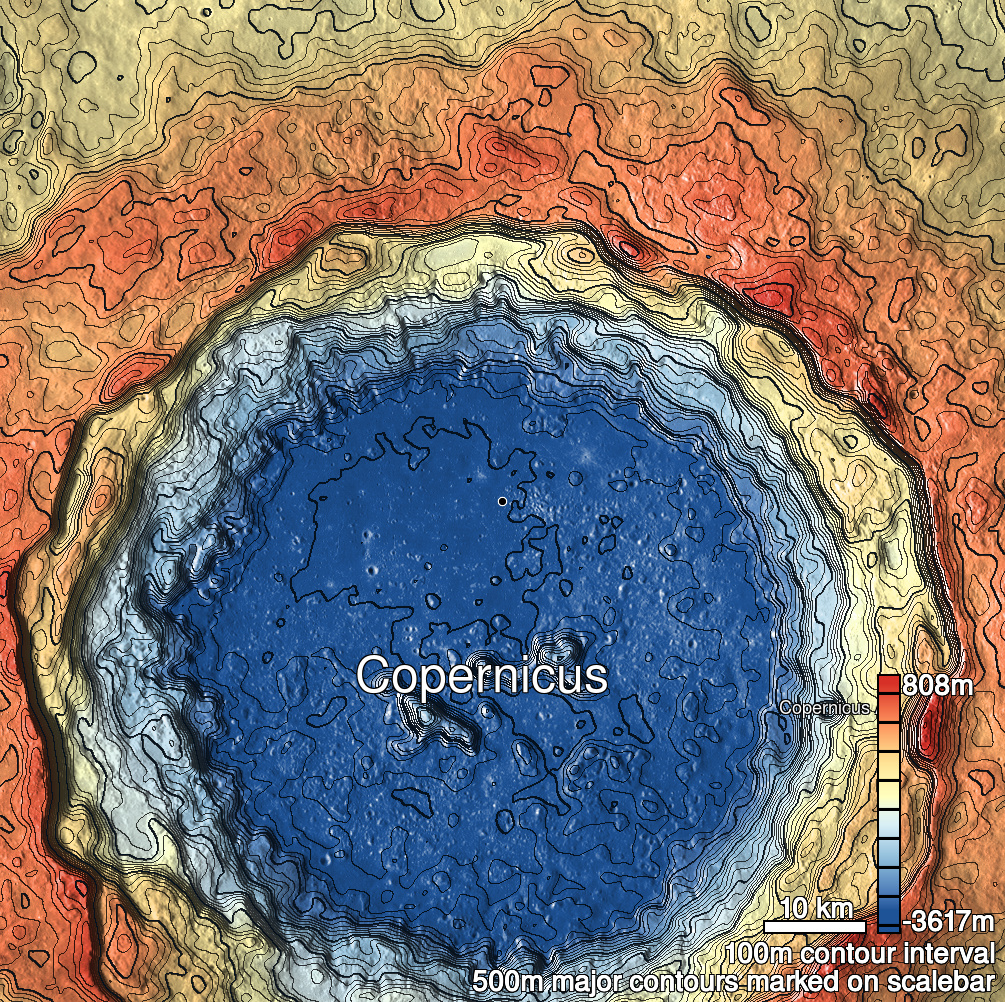

| Copernicus LB4 Shaded Relief | |
|---|---|
 |
| M1139037292R | |
|---|---|
 |
|
| Line | 11562 |
| Sample | 4147 |
| Inc. Angle | 67.12 |
| Emission Angle | 2.18 |
| Time | 7.55 |
| Resolution | 1.15 |
| M1142574974L | |
|---|---|
 |
|
| Inc. Angle | -71.04 |
| Emission Angle | 1.23 |
| Time | 16.73 |
| Resolution | 1.19 |
| M193089462R | |
|---|---|
 |
|
| Inc. Angle | 72.67 |
| Emission Angle | 2.59 |
| Time | 7.18 |
| Resolution | 1.26 |
| Copernicus LB4 Stereo |
|---|
 |
