Pits Atlas: Copernicus LB6
| Impact Melt, Large Bowl pit: Copernicus | |
|---|---|
| Name | Copernicus LB6 |
| Lat. | 10.3127 |
| Long. | 339.7263 |
| Desc. | Elliptical pit with very rounded floor. Smaller and more degraded-looking than the other Copernicus S_ pits, with only the SW wall being more than a couple meters high (it is ~m tall). Interior mostly only has boulders on the W side, and there is one break in the rim with a slope to the floor on the NW side. Slewed image mostly precludes overhangs, although there is an ambiguous darker pixel in M193025138R at the base of the SW wall. |
| Types | Large Bowl |
| Terrain | Impact Melt |
| Host Feature | Copernicus |
| Funnel Min. Diam. | 260 |
| Funnel Max. Diam. | 290 |
| Inner Min. Diam. | 225 |
| Inner Max. Diam. | 250 |
| Azimuth | 175 |
| Depth | 64.0 |
| Depth 1 | 64.0 |
| Depth 2 | N/A |
| Depth 3 | N/A |
| Best Stereo Left | M1106059896R |
| Best Stereo Right | M1106059896R |
| DTMs | |
| Clipping Width | 500 |
| Other IMGs | M1175545925R |
| Data Warning | M1188488085L is the only non-slewed image with a shadow falling near the deepest point of the pit. |
| Entrance Ramp | Y |
| Overhang | N? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

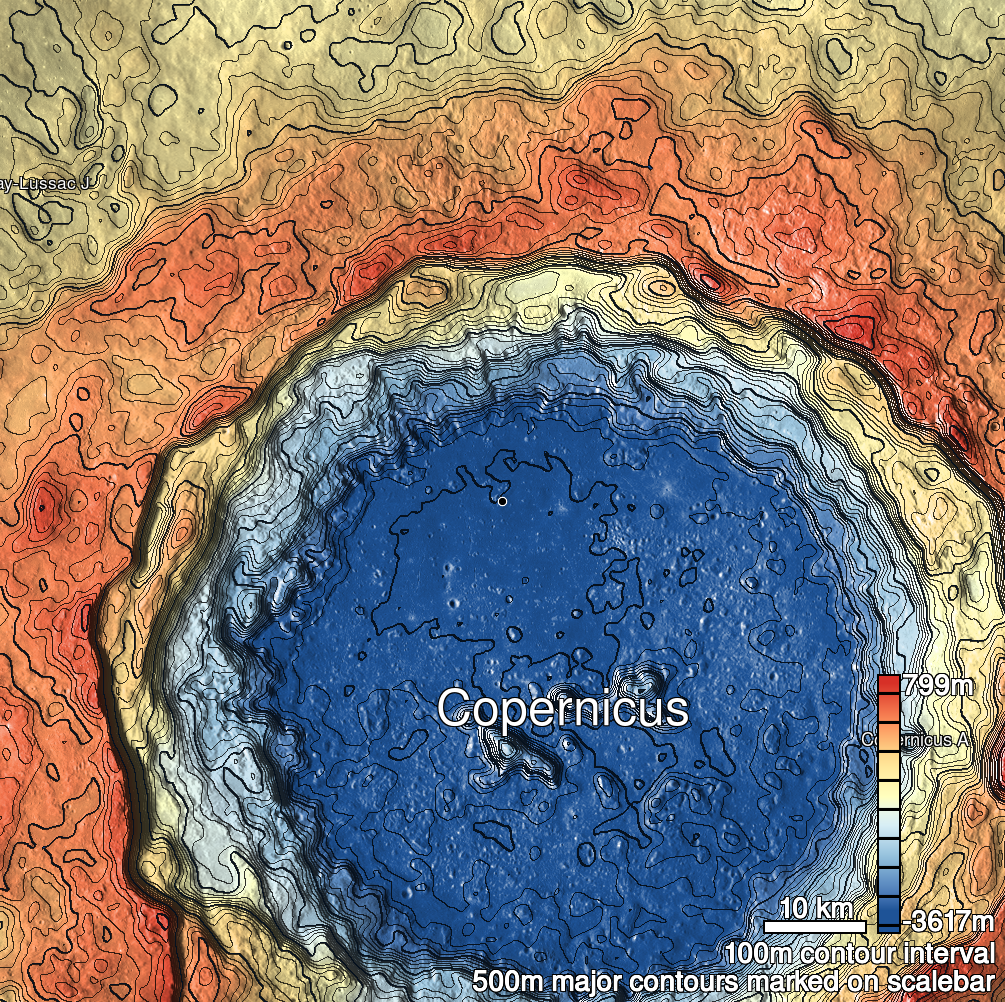

| Copernicus LB6 Shaded Relief | |
|---|---|
 |
| M1188488085L | |
|---|---|
 |
|
| Line | 14451 |
| Sample | 2236 |
| Inc. Angle | -68.44 |
| Emission Angle | 1.92 |
| Time | 16.52 |
| Resolution | 0.96 |
| Copernicus LB6 Stereo |
|---|
 |
