Pits Atlas: Lacus Mortis Pit
| Mare pit: Lacus Mortis | |
|---|---|
| Name | Lacus Mortis Pit |
| Lat. | 44.9608 |
| Long. | 25.6119 |
| Desc. | Large diamond-shaped pit with not-quite-vertical walls. The SW end is a slope from surroundings to floor. The W wall is covered by a debris slope, and the N wall has an overhang a few meters deep, with a back wall apparently visible. The apparent "funnel" is 40-60m deep (of the full pit's ~100m depth from the surrounding surface), there is no clear transition point to vertical wall, although there is an overhang point at ~60m depth. There is a graben ~1km NW, and a much large potential pit ~10 km WSW on the other side of the graben. |
| Types | |
| Terrain | Mare |
| Host Feature | Lacus Mortis |
| Funnel Min. Diam. | 210 |
| Funnel Max. Diam. | 280 |
| Inner Min. Diam. | 110 |
| Inner Max. Diam. | N/A |
| Azimuth | 110 |
| Depth | 60.0 |
| Depth 1 | N/A |
| Depth 2 | N/A |
| Depth 3 | N/A |
| Best Stereo Left | M1317542330L |
| Best Stereo Right | M1317542330L |
| DTMs | |
| Clipping Width | 300 |
| Other IMGs | |
| Data Warning | Depth is determined from stereo modelling; image 1/2/3 are merely useful views, note that image 3 is slewed to the north. Pit depth is calculated assuming a funnel depth of 40 m. |
| Entrance Ramp | Y |
| Overhang | Y |
| Nearby Pits? | ? |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |
| Lacus Mortis Pit Shaded Relief | |
|---|---|
 |

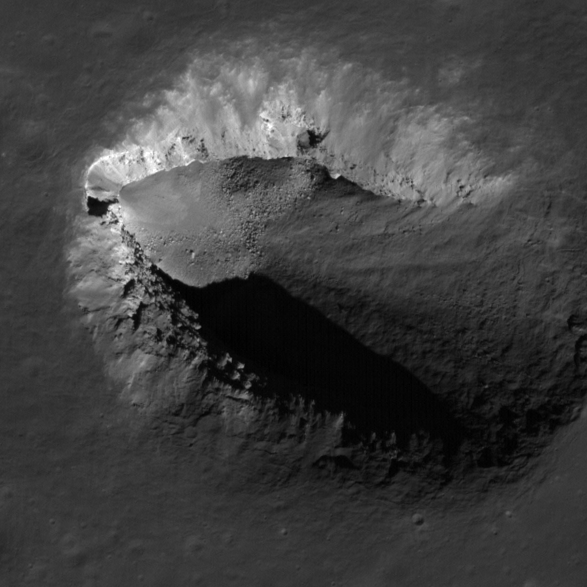

| M126759036L | |
|---|---|
 |
|
| Line | 25650 |
| Sample | 2845 |
| Inc. Angle | 49.39 |
| Emission Angle | -1.53 |
| Time | 10.23 |
| Resolution | 0.48 |

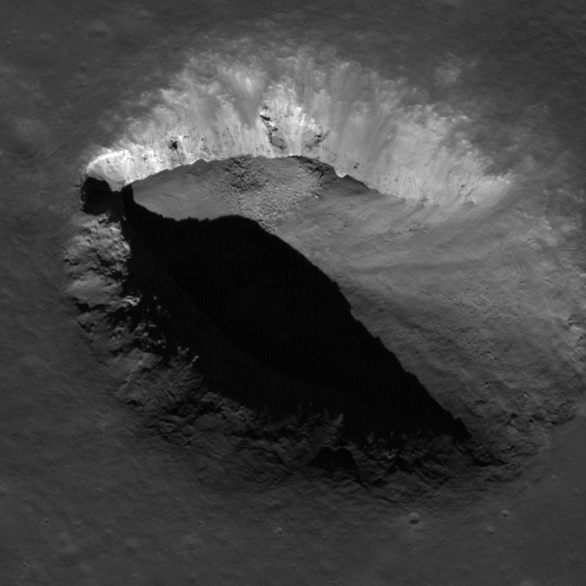

| M109072682R | |
|---|---|
 |
|
| Inc. Angle | -46.47 |
| Emission Angle | 2.22 |
| Time | 12.11 |
| Resolution | 0.48 |
| M1136377273R | |
|---|---|
 |
|
| Inc. Angle | 55.52 |
| Emission Angle | 32.73 |
| Time | 9.59 |
| Resolution | 2.02 |

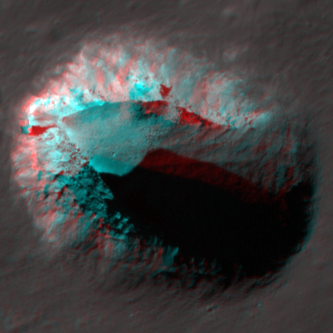

| Lacus Mortis Pit Stereo |
|---|
 |
