Pits Atlas: Crookes 5d
| Impact Melt pit: Crookes | |
|---|---|
| Name | Crookes 5d |
| Lat. | -10.6824 |
| Long. | 194.8626 |
| Desc. | Tiny circular pit in the valley between two PRFs. Floor is visible only in ultra-high-Sun image M1117608455L, 12 degrees incidence. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Crookes |
| Funnel Min. Diam. | 6 |
| Funnel Max. Diam. | 6 |
| Inner Min. Diam. | 4 |
| Inner Max. Diam. | 4 |
| Azimuth | 135 |
| Depth | 10.0 |
| Depth 1 | 9.9 |
| Depth 2 | >7.0 |
| Depth 3 | >8.0 |
| Best Stereo Left | M176359843L |
| Best Stereo Right | M176359843L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | Y |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | Y |
| Colinear Depressions | N |
| Colinear Fractures | N |

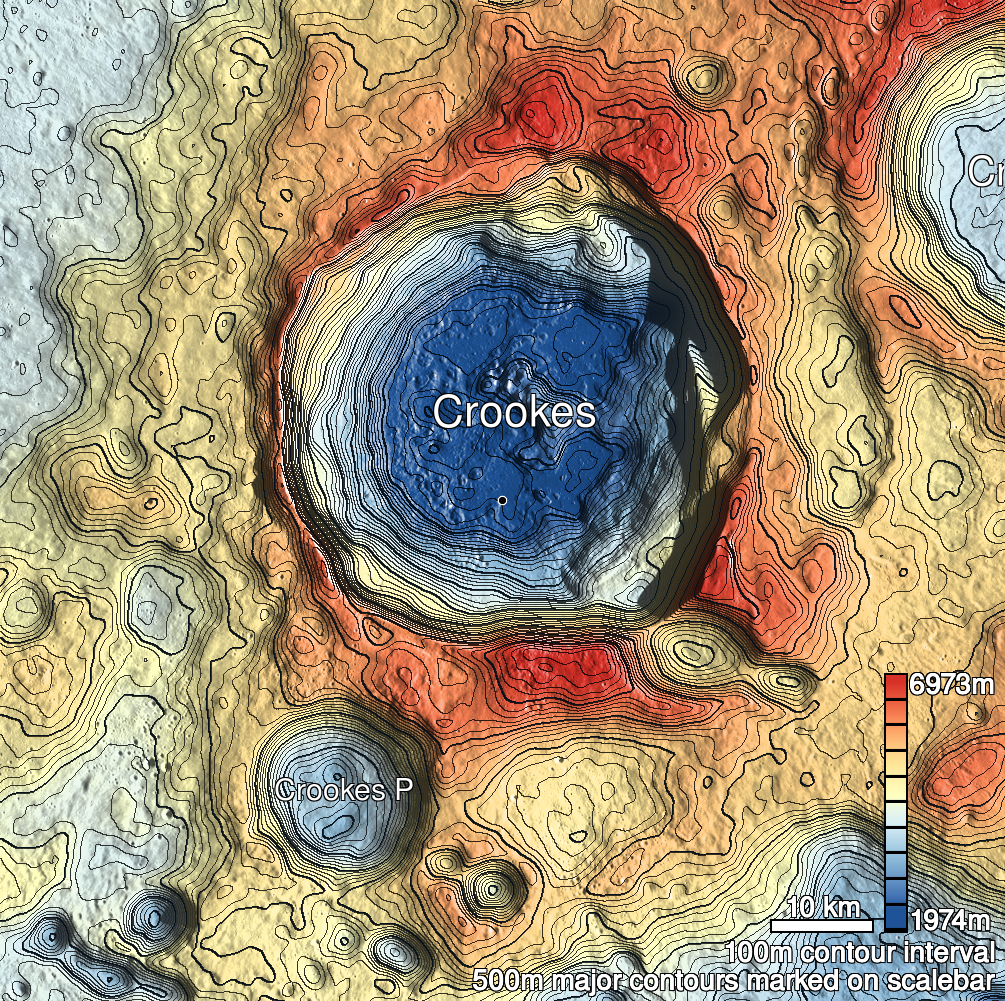

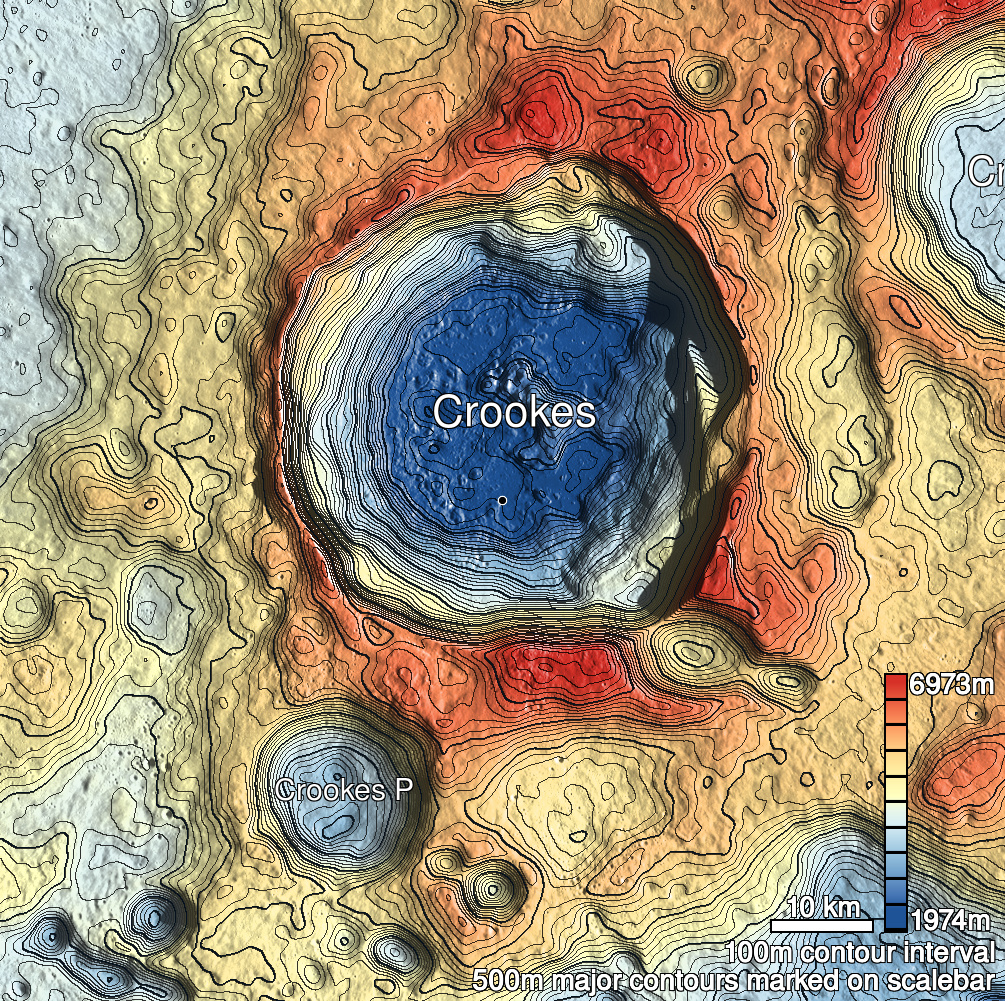

| Crookes 5d Shaded Relief | |
|---|---|
 |
| M1117608455L | |
|---|---|
 |
|
| Line | 23860 |
| Sample | 1204 |
| Inc. Angle | -12.03 |
| Emission Angle | 2.54 |
| Time | 12.08 |
| Resolution | 0.94 |
| M1119966613L | |
|---|---|
 |
|
| Inc. Angle | 28.54 |
| Emission Angle | -2.82 |
| Time | 10.25 |
| Resolution | 0.93 |
| M1191791679L | |
|---|---|
 |
|
| Inc. Angle | -31.57 |
| Emission Angle | 1.62 |
| Time | 14.03 |
| Resolution | 0.87 |
| Crookes 5d Stereo |
|---|
 |
