Pits Atlas: Crookes 10
| Impact Melt pit: Crookes | |
|---|---|
| Name | Crookes 10 |
| Lat. | -10.1717 |
| Long. | 194.8302 |
| Desc. | Elliptical pit with the long axis running NNE-SSW. N and S ends appear to have ramps running from rim to floor (S ramp is much wider). There is a chain of collapses running roughly E-W, with the E end ~140m NW of this point. There are a few minor collapses running ~100m W from this pit. Crookes 9 is ~180m E. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Crookes |
| Funnel Min. Diam. | 20 |
| Funnel Max. Diam. | 40 |
| Inner Min. Diam. | 12 |
| Inner Max. Diam. | 30 |
| Azimuth | 20 |
| Depth | 8.0 |
| Depth 1 | 10.7 |
| Depth 2 | 6.5 |
| Depth 3 | 7.5 |
| Best Stereo Left | M176359843L |
| Best Stereo Right | M176359843L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depth 3 is from E wall, others are from W wall. In stereo, E wall appears higher than W. |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y? |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | Y |
| Colinear Depressions | N |
| Colinear Fractures | N |

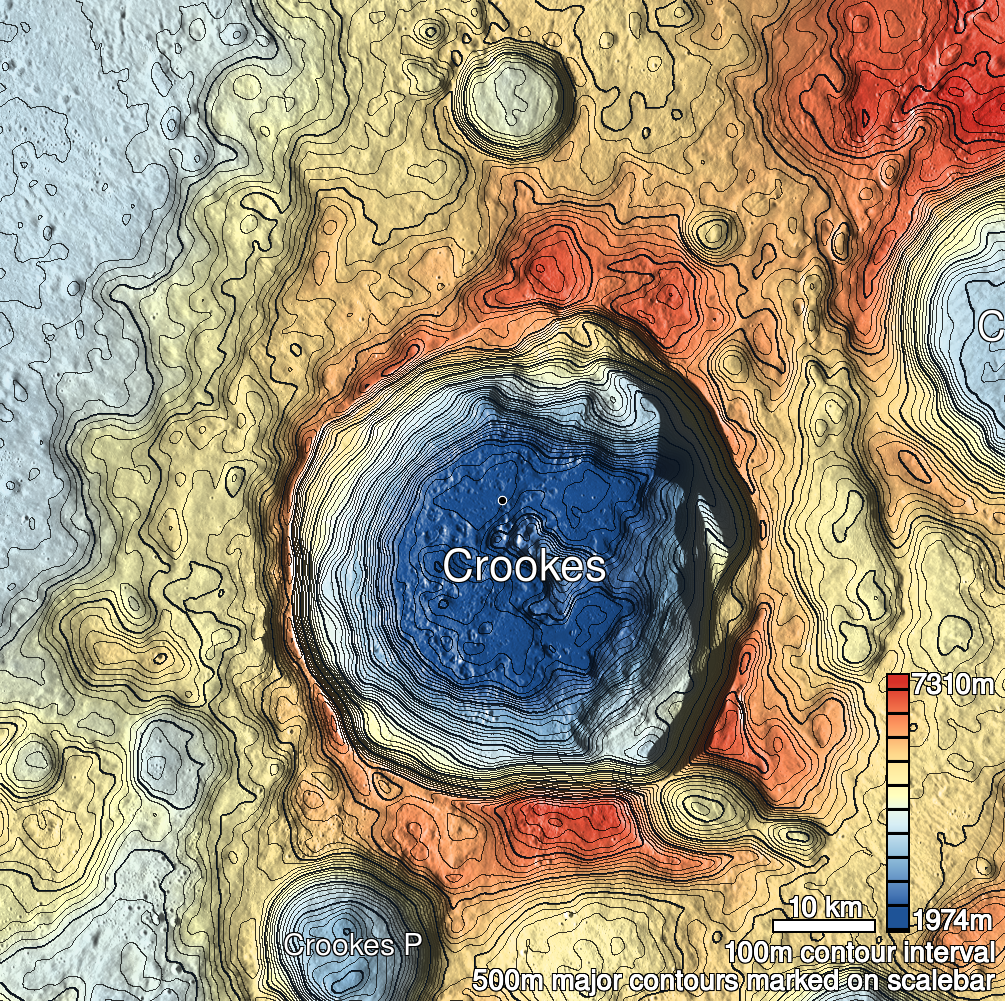

| Crookes 10 Shaded Relief | |
|---|---|
 |
| M1119966613L | |
|---|---|
 |
|
| Line | 36522 |
| Sample | 2127 |
| Inc. Angle | 28.38 |
| Emission Angle | -1.98 |
| Time | 10.24 |
| Resolution | 0.93 |
| M105593830L | |
|---|---|
 |
|
| Inc. Angle | -40.38 |
| Emission Angle | 0.59 |
| Time | 14.63 |
| Resolution | 1.04 |
| M1191791679L | |
|---|---|
 |
|
| Inc. Angle | -31.41 |
| Emission Angle | 1.87 |
| Time | 14.02 |
| Resolution | 0.88 |

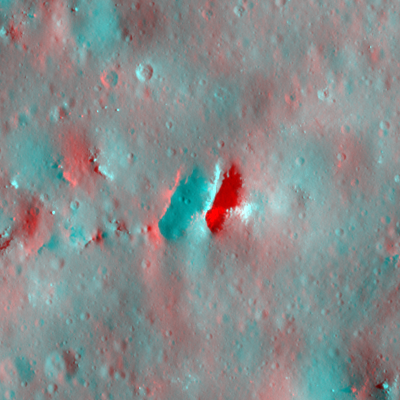

| Crookes 10 Stereo |
|---|
 |
