Pits Atlas: Das 4d
| Impact Melt pit: Das | |
|---|---|
| Name | Das 4d |
| Lat. | -26.4189 |
| Long. | 222.7907 |
| Desc. | Southernmost of the Das 4 cluster of ~5 pits. N wall seems to be a slope downward to the S wall, and is continuous with a ~30-m-wide depression to the N. W wall is in the side of a small PRF. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Das |
| Funnel Min. Diam. | 12 |
| Funnel Max. Diam. | 18 |
| Inner Min. Diam. | 6 |
| Inner Max. Diam. | 9 |
| Azimuth | 130 |
| Depth | >6.0 |
| Depth 1 | >7.0 |
| Depth 2 | 4.8 |
| Depth 3 | >4.0 |
| Best Stereo Left | M1198681331R |
| Best Stereo Right | M1198681331R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depth 1 is from top of funnel. Funnel measure does not include the shallow depression to the NE. Depth 2 is from rim to N slope; down-sun side of N wall slope also casts a shadow. |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | Y |
| In Depression | Y |
| Colinear Pits | Y |
| Colinear Depressions | N |
| Colinear Fractures | N |

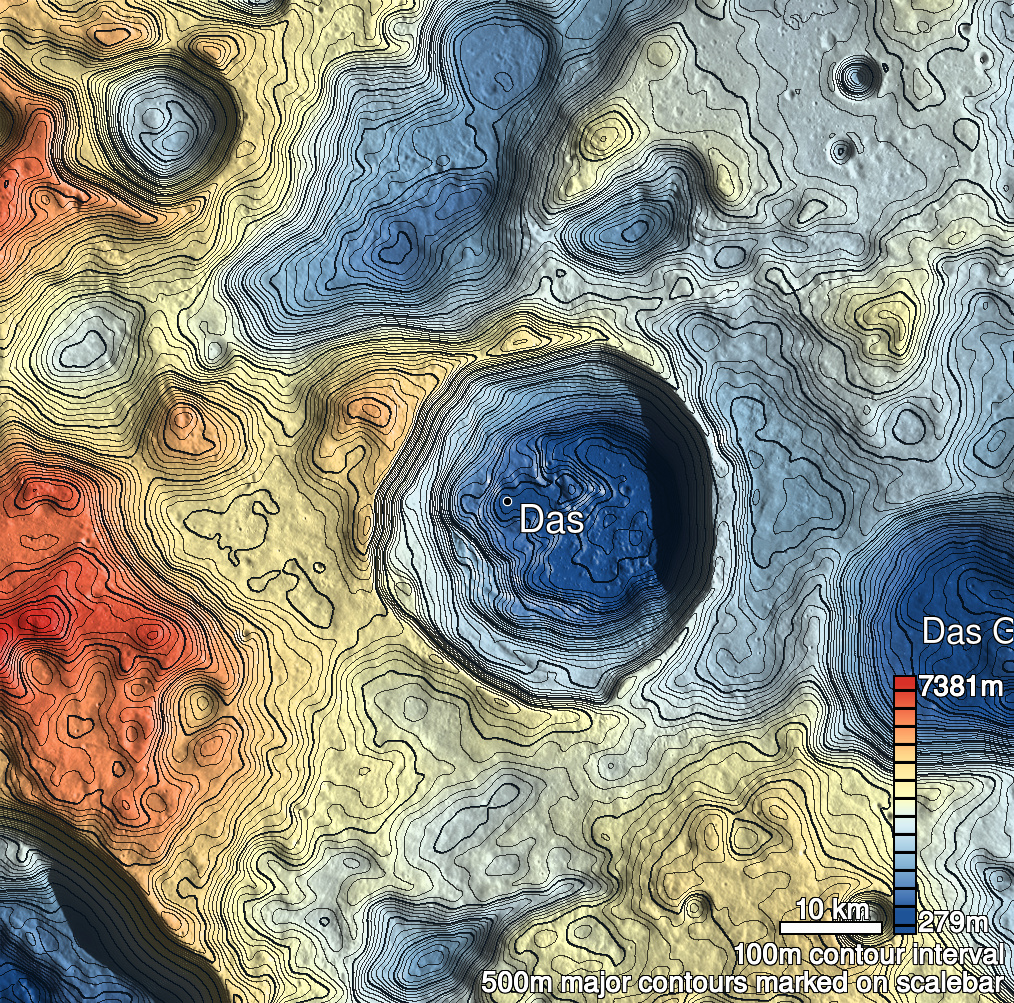

| Das 4d Shaded Relief | |
|---|---|
 |

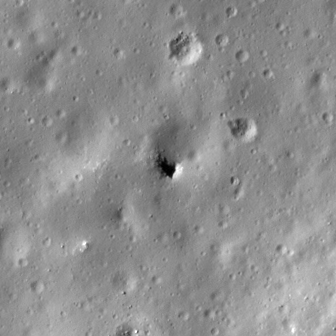

| M136085100R | |
|---|---|
 |
|
| Line | 16031 |
| Sample | 2520 |
| Inc. Angle | -53.79 |
| Emission Angle | 9.09 |
| Time | 15.29 |
| Resolution | 0.58 |
| M1237491651R | |
|---|---|
 |
|
| Inc. Angle | -37.54 |
| Emission Angle | -0.56 |
| Time | 13.75 |
| Resolution | 0.88 |
| M1303331989L | |
|---|---|
 |
|
| Inc. Angle | 50.57 |
| Emission Angle | -2.14 |
| Time | 8.99 |
| Resolution | 0.92 |
| Das 4d Stereo |
|---|
 |
